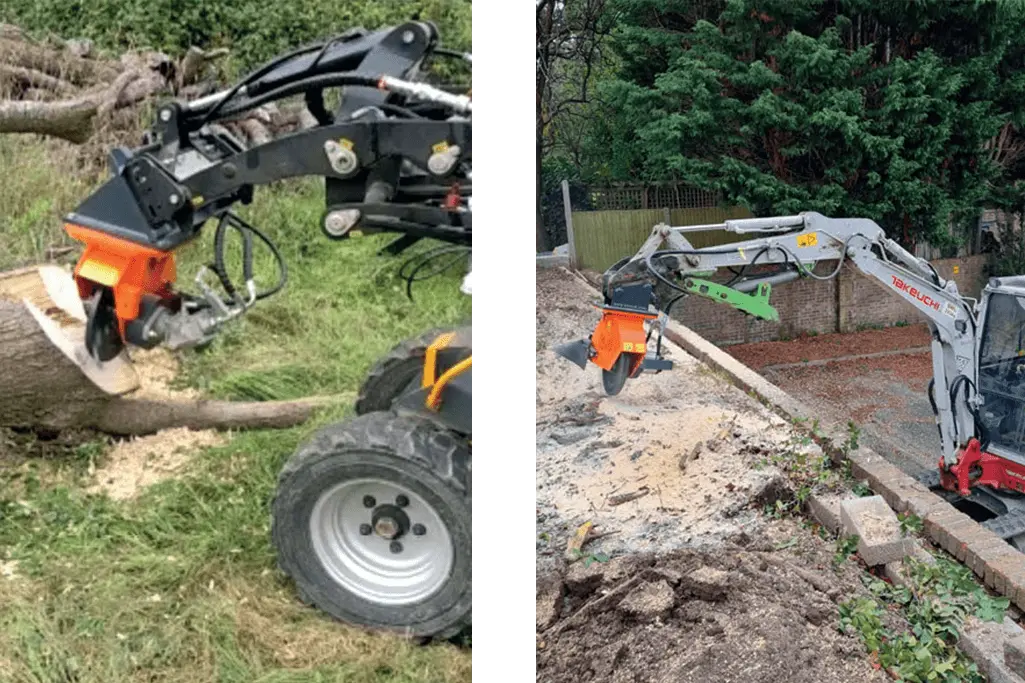

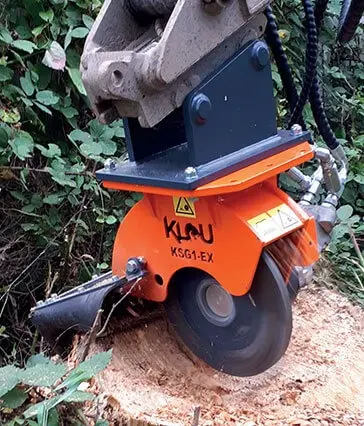

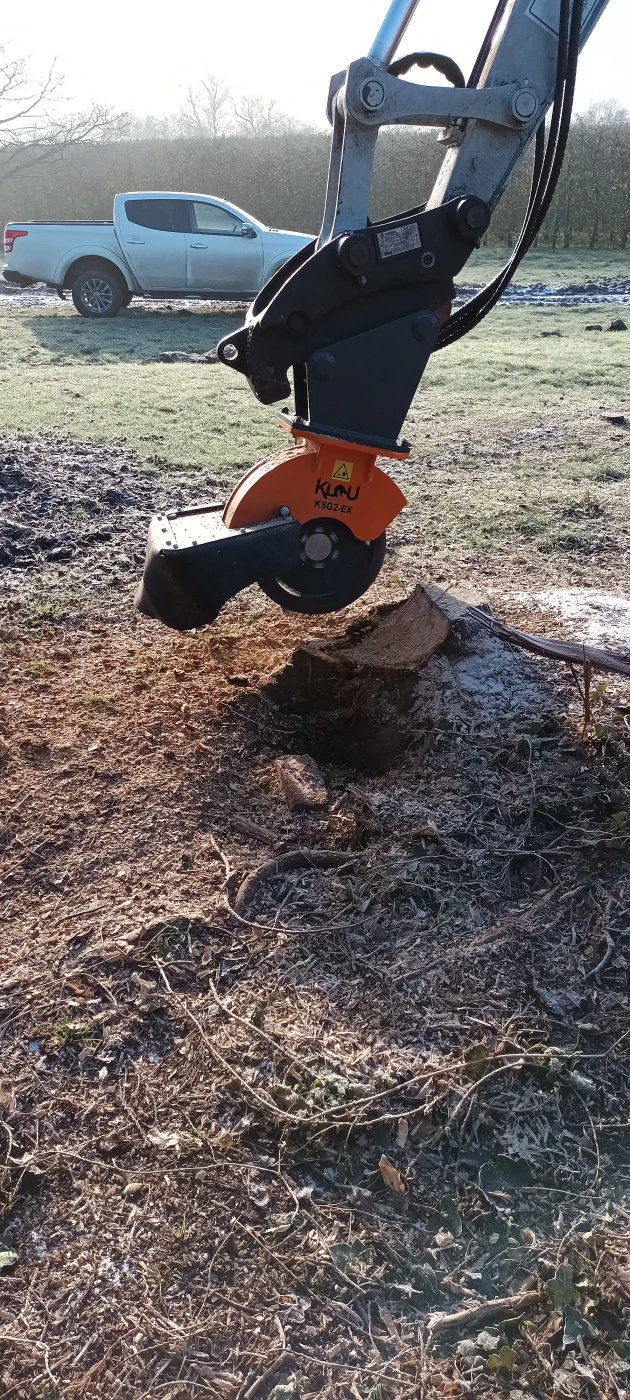

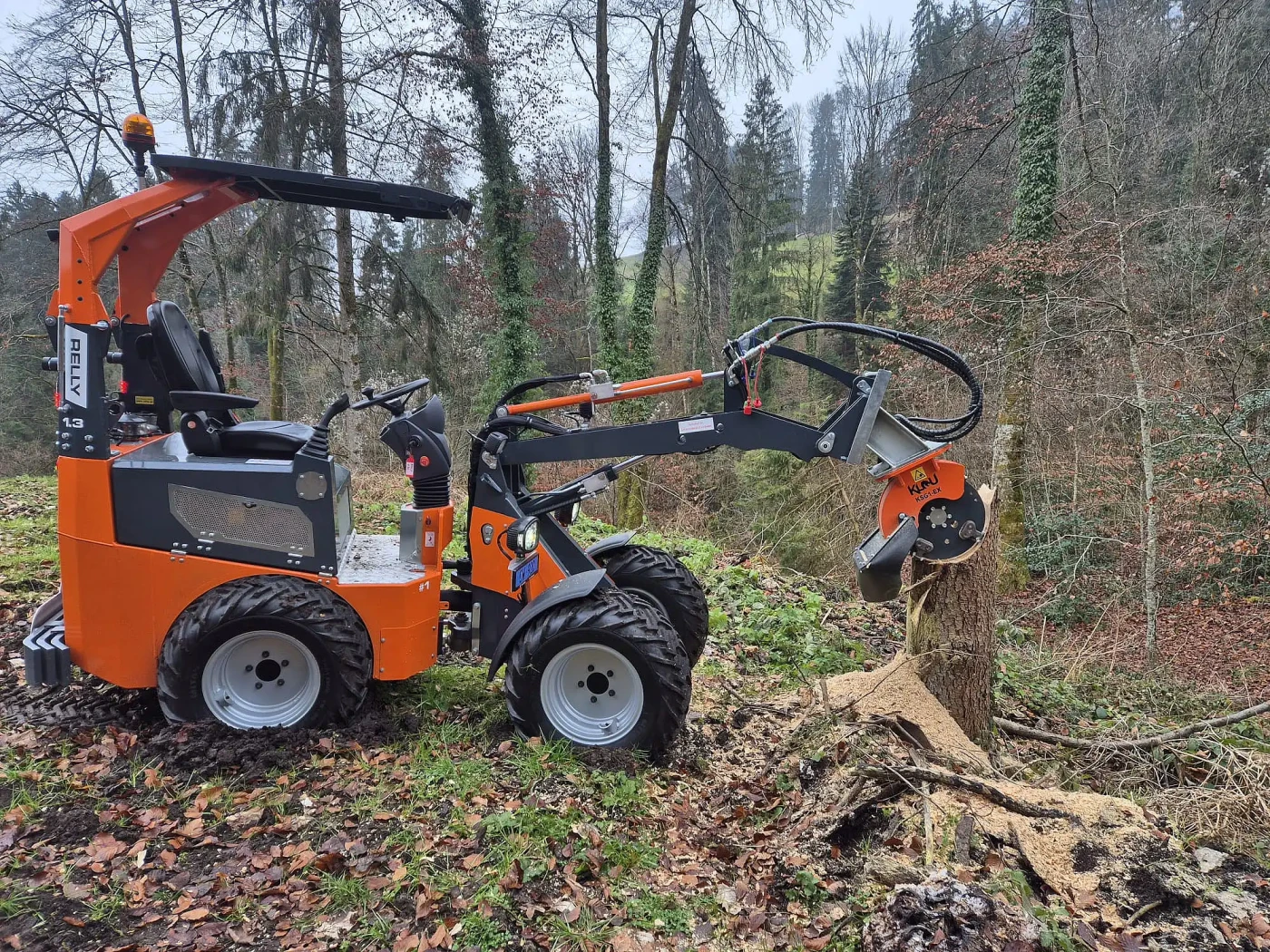

The reach of the carrier machine can be used to access stumps that are difficult or impossible to get close to - some common locations include:
Steep embankments - such as beside roads/railways
In flower-beds/ornamental borders
Behind fences
The reach of the carrier machine can also reduce the amount of re-positioning required when removing multiple stumps, minimising damage to sensitive surfaces such as lawns.
Pricing
Videos
Product Features

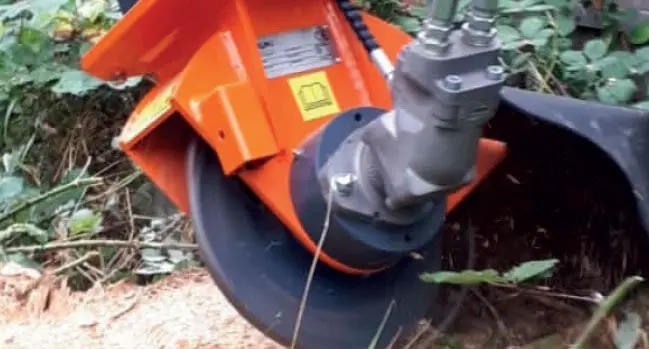

The transverse mounting position ensures the best possible visibility for the operator, preventing fatigue in order to boost efficiency.

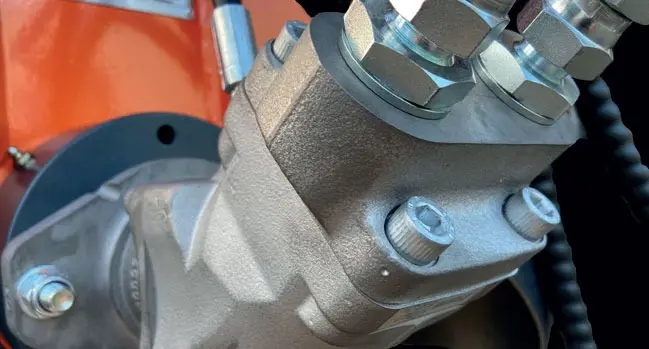

The large-displacement axial piston motor runs well within its maximum power rating, minimising wear for a long service life while reducing power losses to heat generation, maximising efficiency.

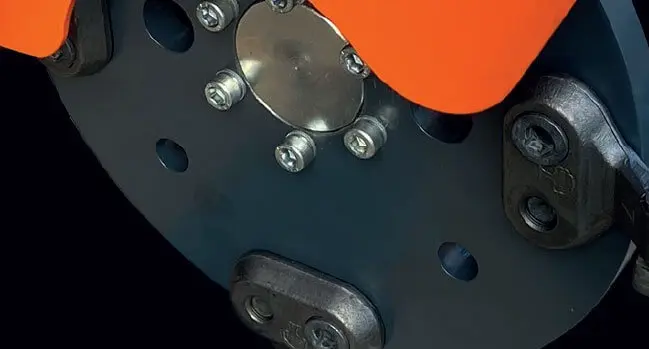

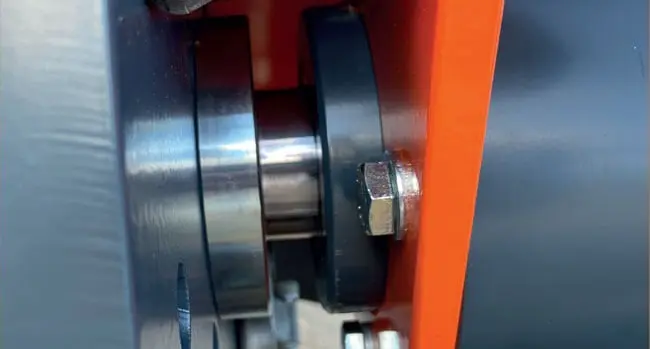

The practically unbreakable tempered steel shaft runs in two massive taper-roller bearings, offering all of the efficiency gains of a direct-drive system (no power lost to belts or gearboxes), while protecting the motor from high axial and radial loads.
The cutting wheel turns at a relatively low speed but with very high torque, which ensures that power goes into the stump rather being lost to aerodynamic drag.

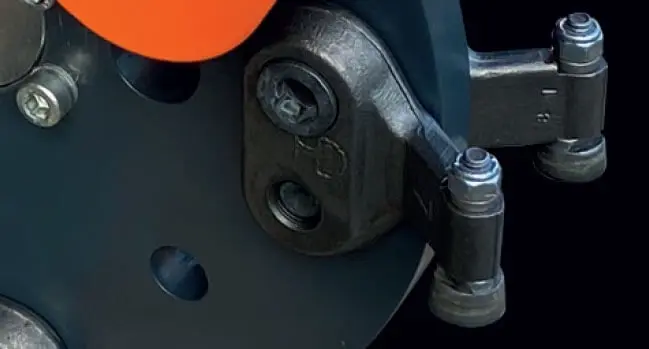

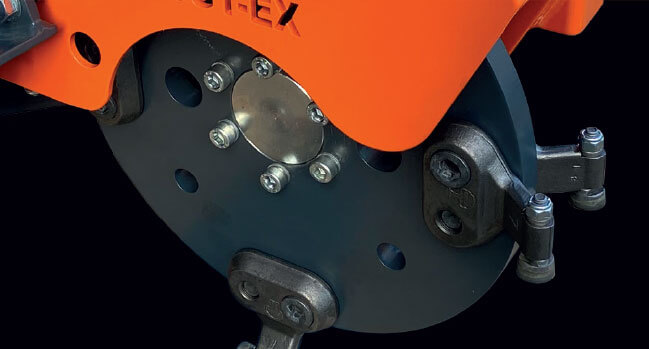

The replaceable, self-sharpening tungsten carbide teeth have multiple cutting edges, reducing wearing part costs, and can easily be rotated or changed without the need to brace the cutting wheel.

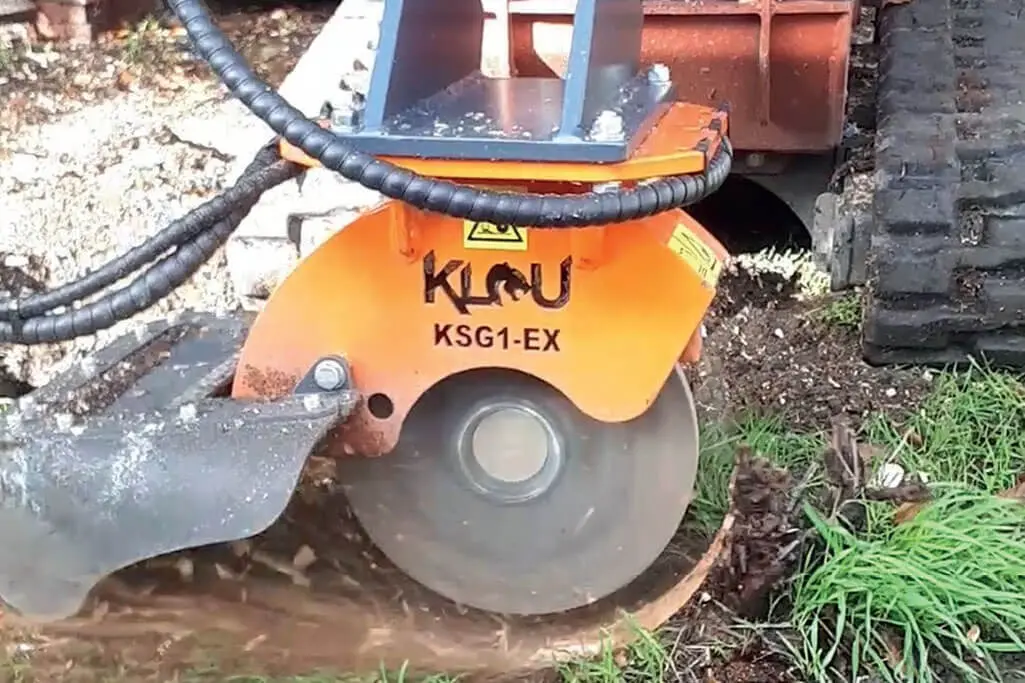

The guard is mounted on a pivot, allowing it to move clear as you get deeper into the cut, while still preventing debris being thrown far from the working area.
The cutting wheel is designed to retain momentum, evening out load peaks, and permitting smooth, even cuts.

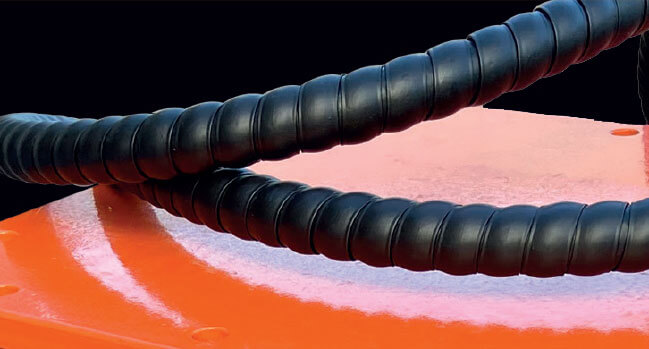

The hydraulic pipes are spiral-wrapped, protecting them from scuff wear.
Product Specification
Download .pdf Document
Click on the button below to download the full .pdf document.

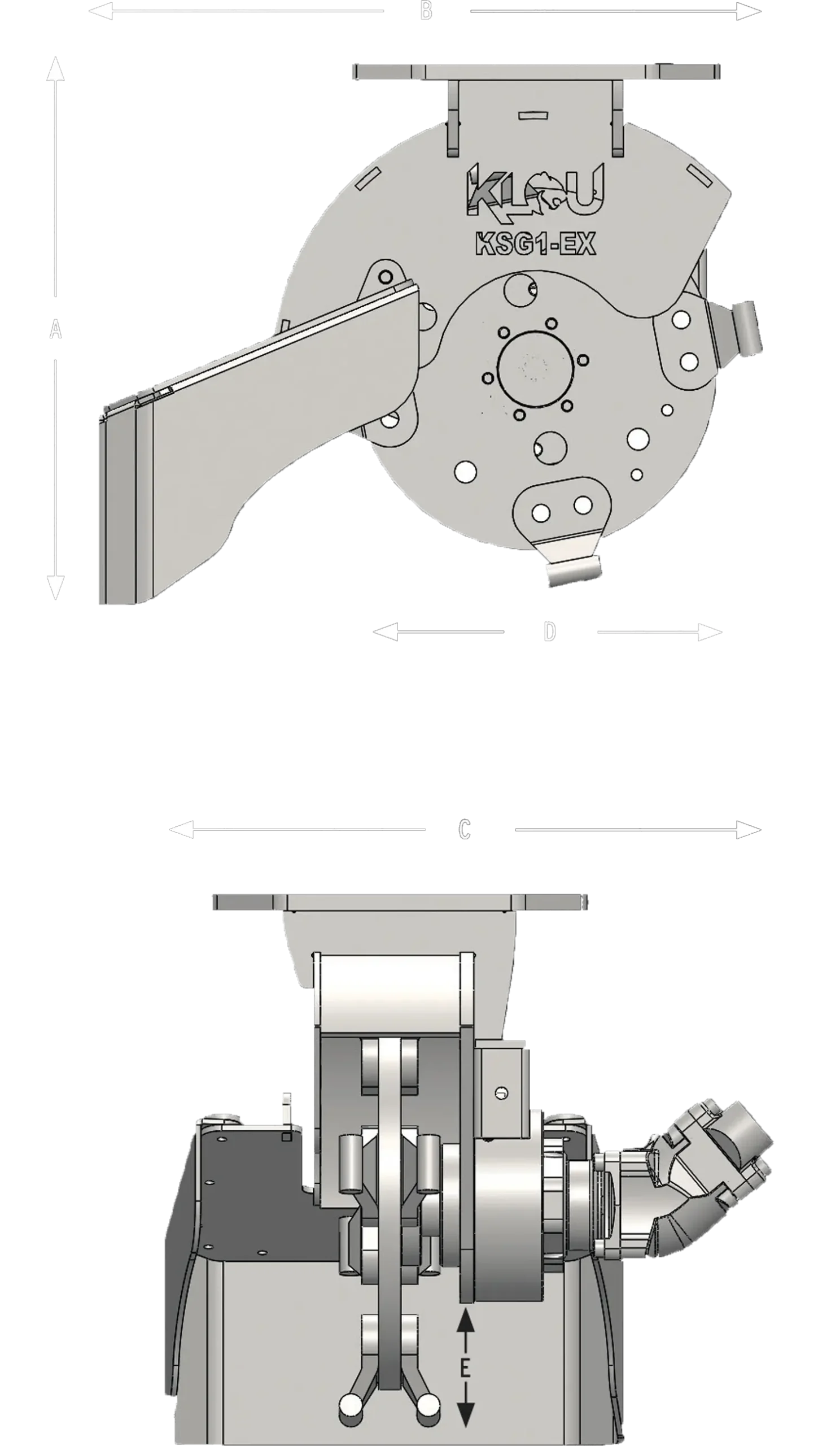

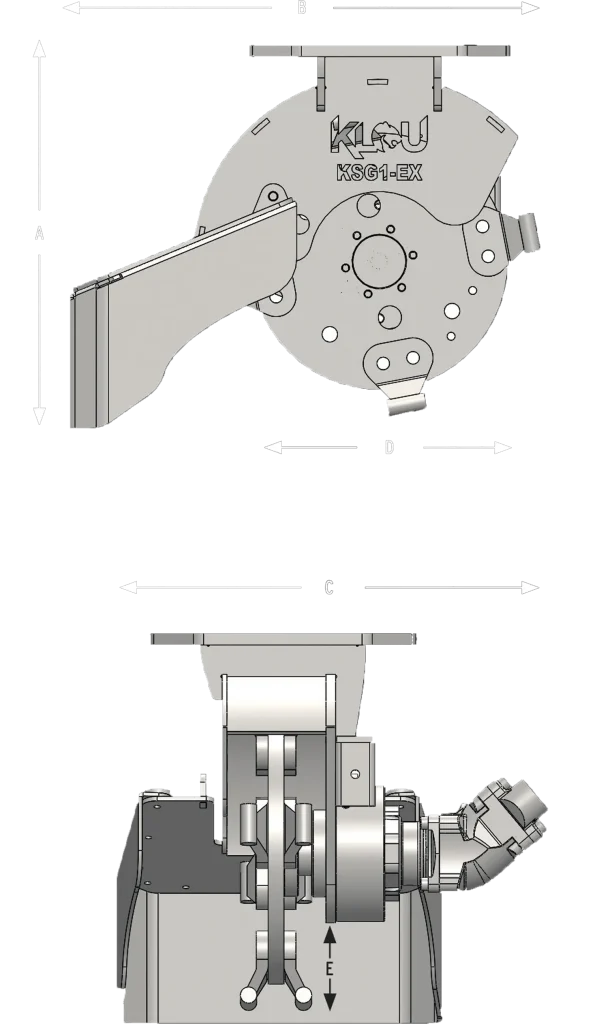

| Dimensions (exc tool grip & stand) | KSG1-EX | KSG2-EX |
|---|---|---|
| A - Overall height (mm) | 490 | 560 |
| B - Overall width (mm) | 605 | 705 |
| C - Overall length (mm) | 690 | 700 |
| D - Cutter wheel dia. inc. teeth (mm) | 415 | 489 |
| E - Min. hub clearance* (mm) | 120 | 147 |
| Overall weight (kg) | 105 | 125 |
| Hydraulic service requirements | KSG1-EX | KSG2-EX |
|---|---|---|
| Min/max flow (litres/min) | 22/80 | 50/150 |
| Min/max pressure (bar) | 150/300 | 150/300 |
| Case drain required? | Yes | Yes |
| Pressure-free return line(hammer circuit) required? | No | No |
Compatible with the following machinery
Mini skid-steers
Sit-in skid-steers
Tractor Front-end Loaders
Telehandlers
Mini Articulated Loaders
Excavators
