Rotating KXG 5-claw grapples are the ultimate option for any serious contractor in the tree management, site clearance and green waste recycling industries. With class-leading crushing power, nearly indestructible claws and the high-torque, high-speed ‘XDR’ rotation unit available on all units from the KXG15 upwards, this is a grapple that you can rely on day in, day out in all conditions.
Product Features

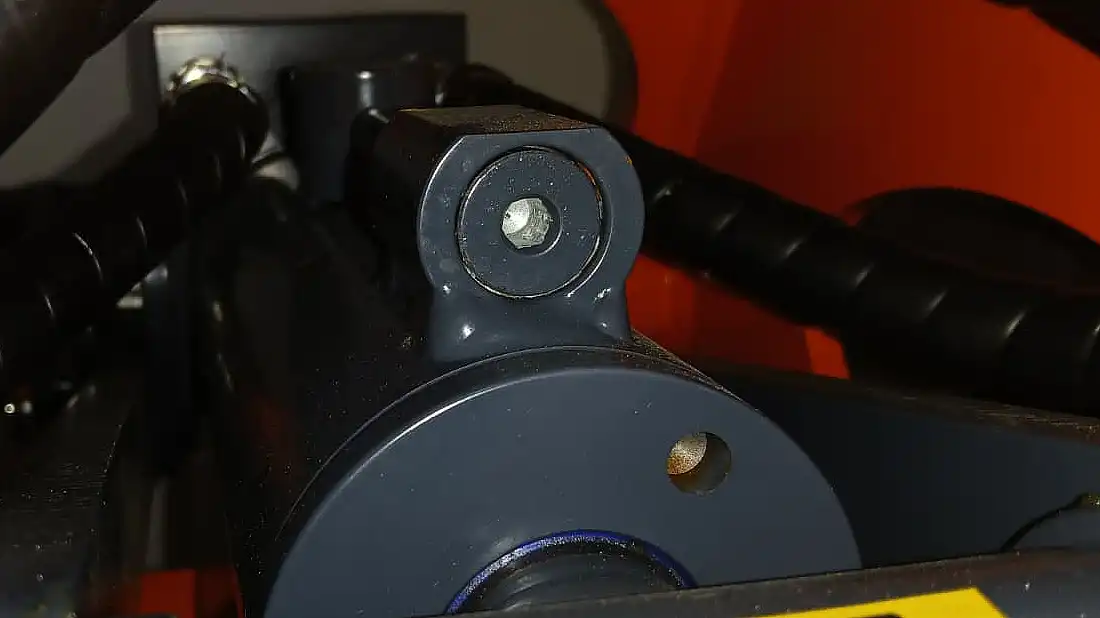

Large-bore ram for class-leading gripping and crushing power. KXG21 and up have hydraulic end damping to prevent impact jolt as grab fully opens

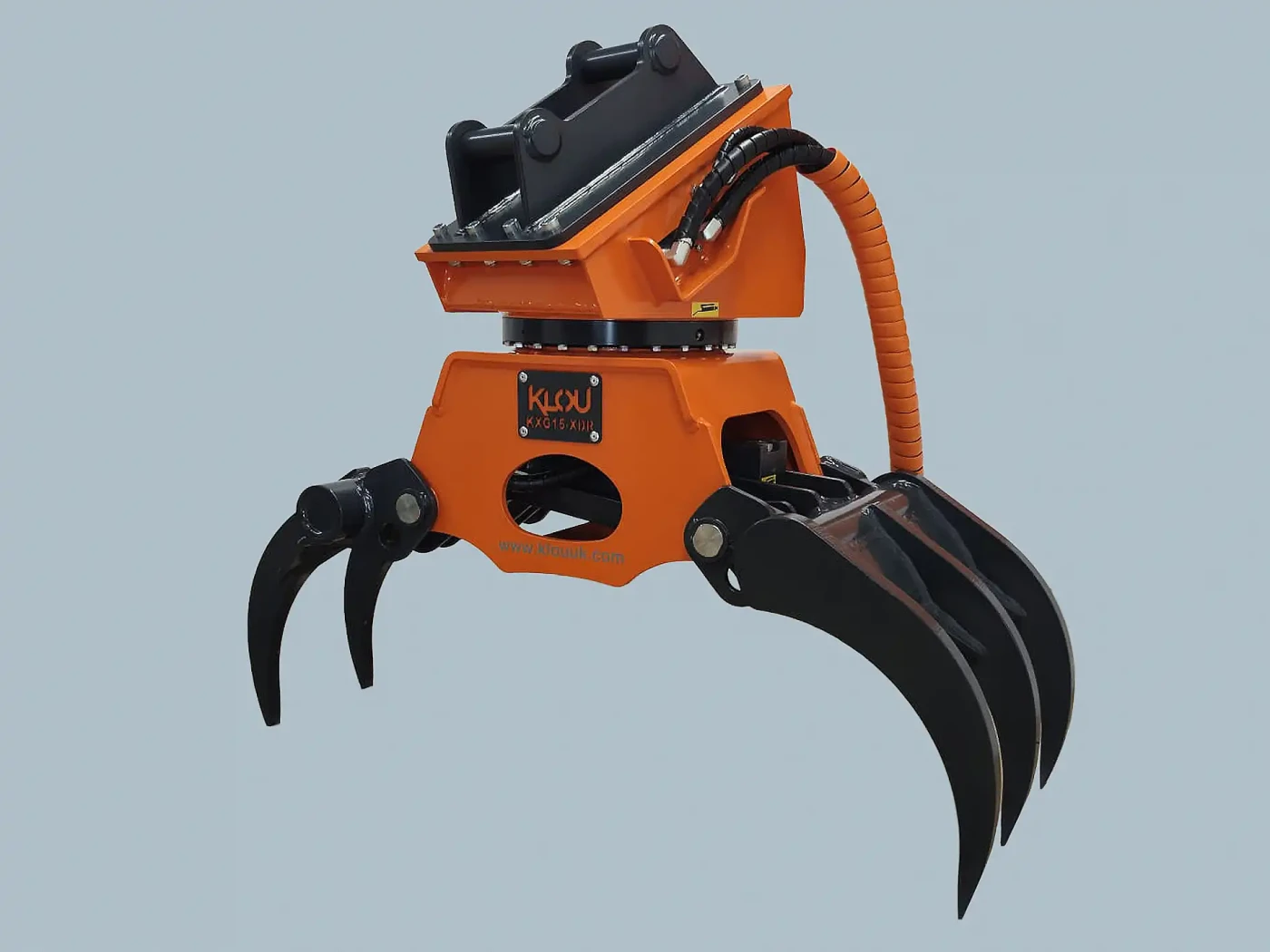

Strenx® 700 body - Twice the strength of most structural steels to maximise lifespan
KXG10-R and KXG10-HDR supplied with heavy-duty bolt-on rotators

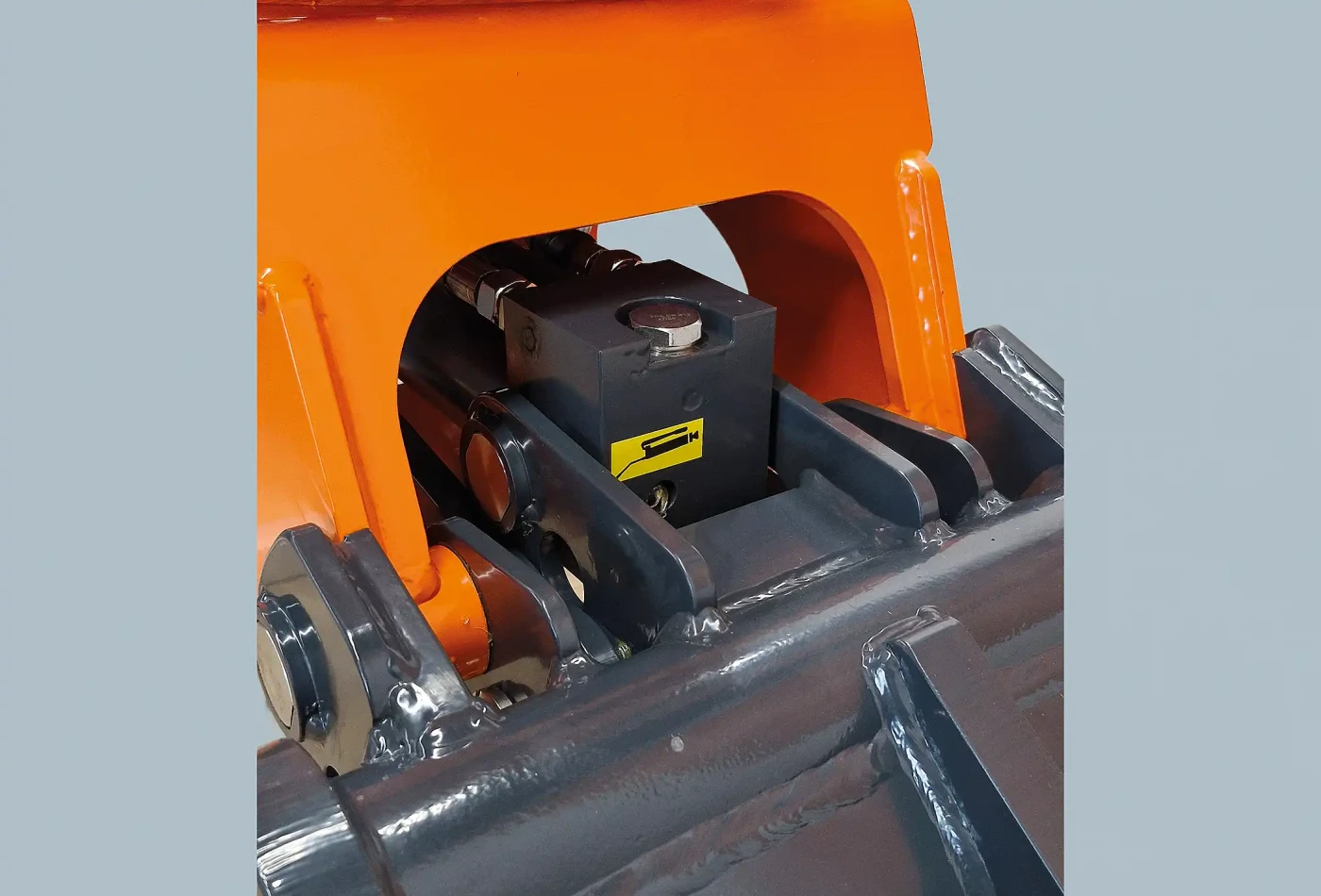

Integrated check valve prevents ram opening without operator input even if pressure is lost

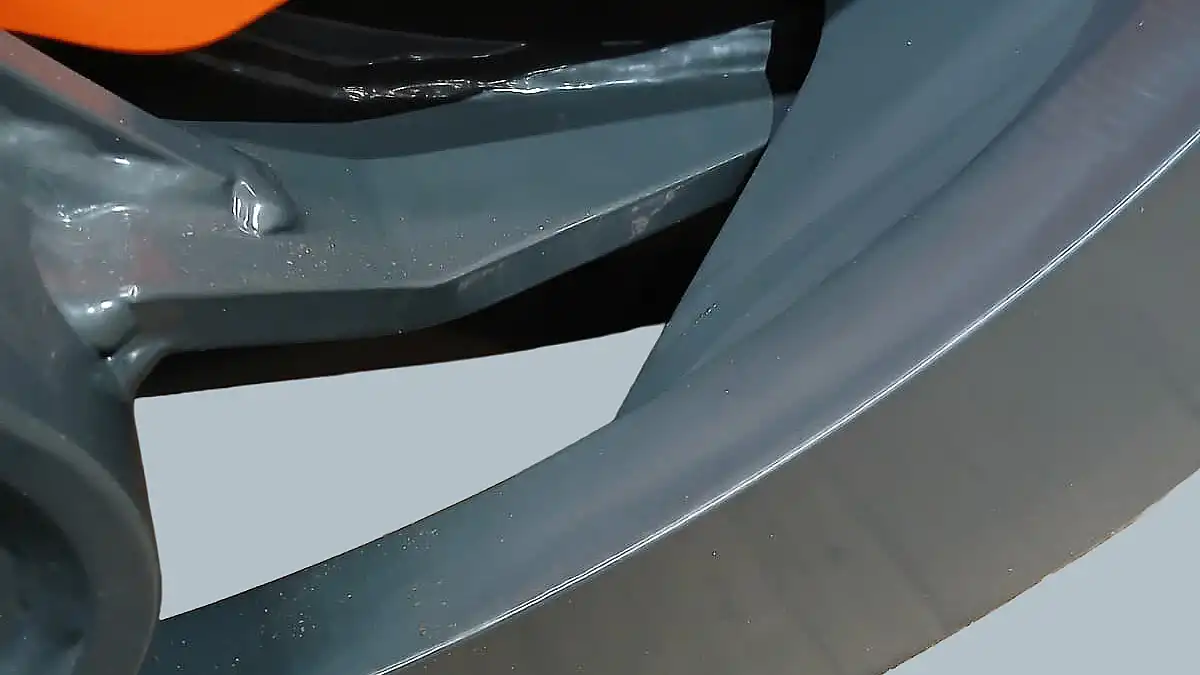

Extreme-duty, heavily gusseted Hardox® 450 claws
Internal hoses protected by the grapple body
Mechanical end-stops protect ram and timing bars from overloading when fully open

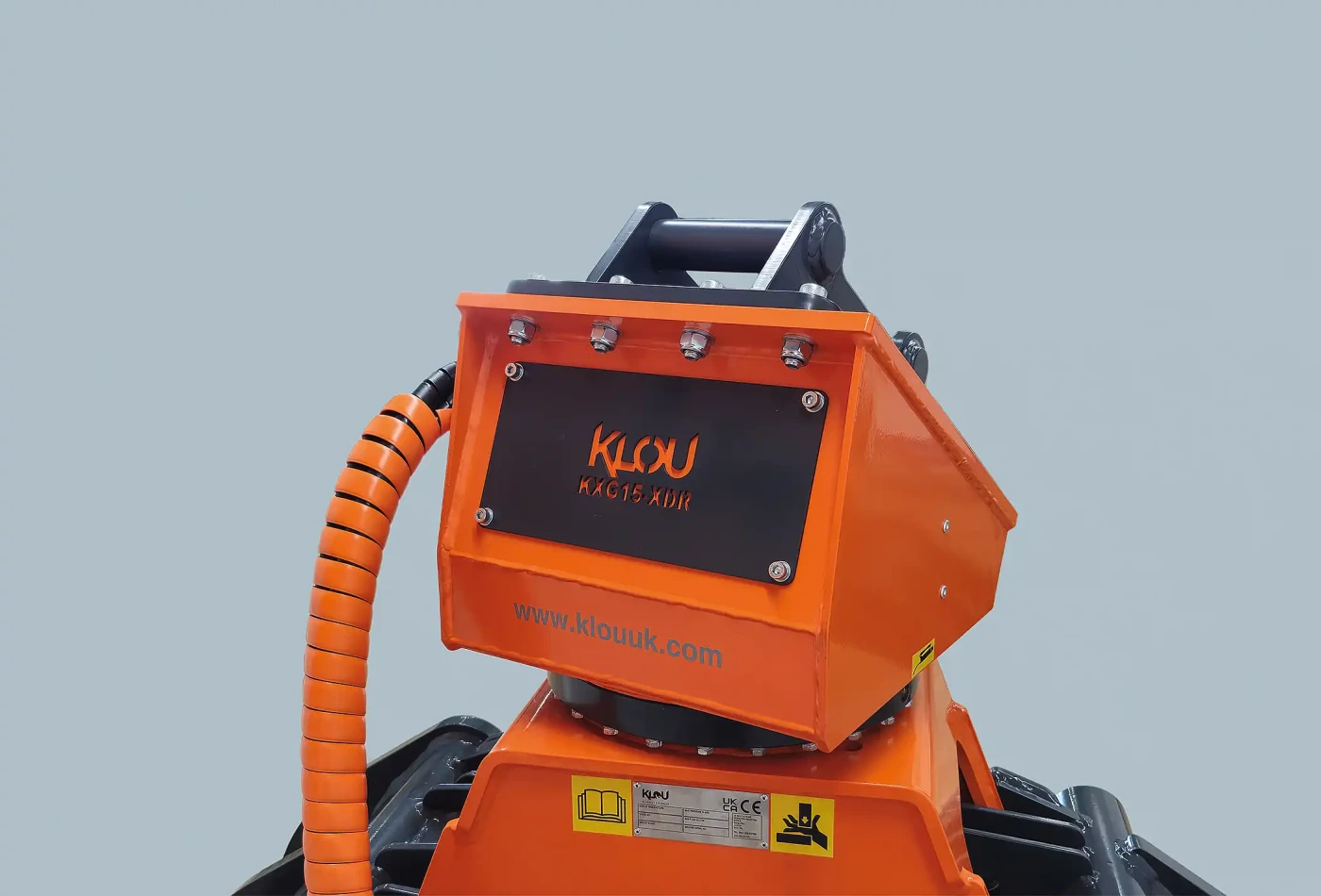

Extreme-duty slew ring rotation unit with multiple motors offering high torque and high speed (available on KXG15 to KXG29)
Compatible with the following machinery
KXG10-R
KXG10-HDR
KXG15-XDR
KXG21-XDR
KXG29-XDR
Excavator
2.0 - 3.0 t
3.0 - 4.0 t
4.5 - 7.5 t
7.5 - 11.0 t
11.0 - 16.0 t
Mini skid-steer
-
1.1 - 2.0 t
2.0 - 3.5 t
-
-
Sit-in skid steer
-
2.5 - 3.5 t
3.5 - 5.0 t
5.0 - 6.0 t
-
Mini Articulated Loaders
-
1.3 - 2.0 t
2.0 - 3.0 t
-
-
Pricing
KXG10-R
£4,200 - £5,300
KXG10-HDR
£5,000 - £6,400
KXG15-XDR
£8,200 - £9,500
KXG21-XDR
£10,750 - £11,750
KXG29-XDR
£13,335 - £14,535
Product Specification
| Hydraulic service requirements | KXG10-R | KXG10-HDR | KXG15-XDR | KXG21-XDR | KXG29-XDR |
|---|---|---|---|---|---|
| Min/max flow (litres/min) | 15/60 | 15/60 | 35/100 | 50/115 | 70/180 |
| Min/max pressure (bar) | 150/250 | 150/250 | 150/250 | 150/300 | 150/300 |
| Case drain required? | No | No | No | No | No |
| Pressure free return line required | No | No | No | No | No |
| Dimensions (exc tool grip) | KXG10-R | KXG10-HDR | KXG15-XDR | KXG21-XDR | KXG29-XDR |
|---|---|---|---|---|---|
| A - Overall height (mm) | 544 | 571 | 855 | 1005 | 1153 |
| B1 - Overall width - open (mm) | 1029 | 1029 | 1284 | 1495 | 1756 |
| B2 - Overall width - closed (mm) | 547 | 547 | 704 | 850 | 950 |
| C - Overall length (mm) | 413 | 413 | 500 | 620 | 734 |
| D - Max. open width (mm) | 962 | 962 | 1200 | 1380 | 1626 |
| E - Min. closed diameter (mm) | 50 | 50 | 60 | 80 | 85 |
| Max. log diameter (mm) | 670 | 670 | 850 | 950 | 1080 |
| Overall weight (kg) | 125 | 146 | 295 | 500 | 835 |
