They can be used for the installation of:

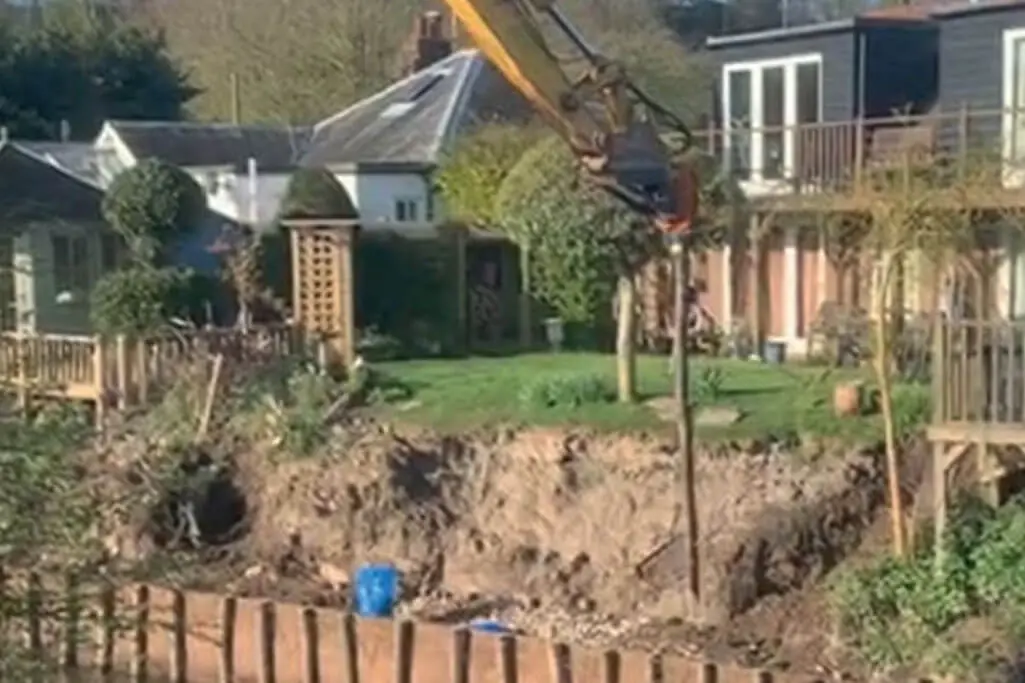

Bank stabilisation systems in rivers

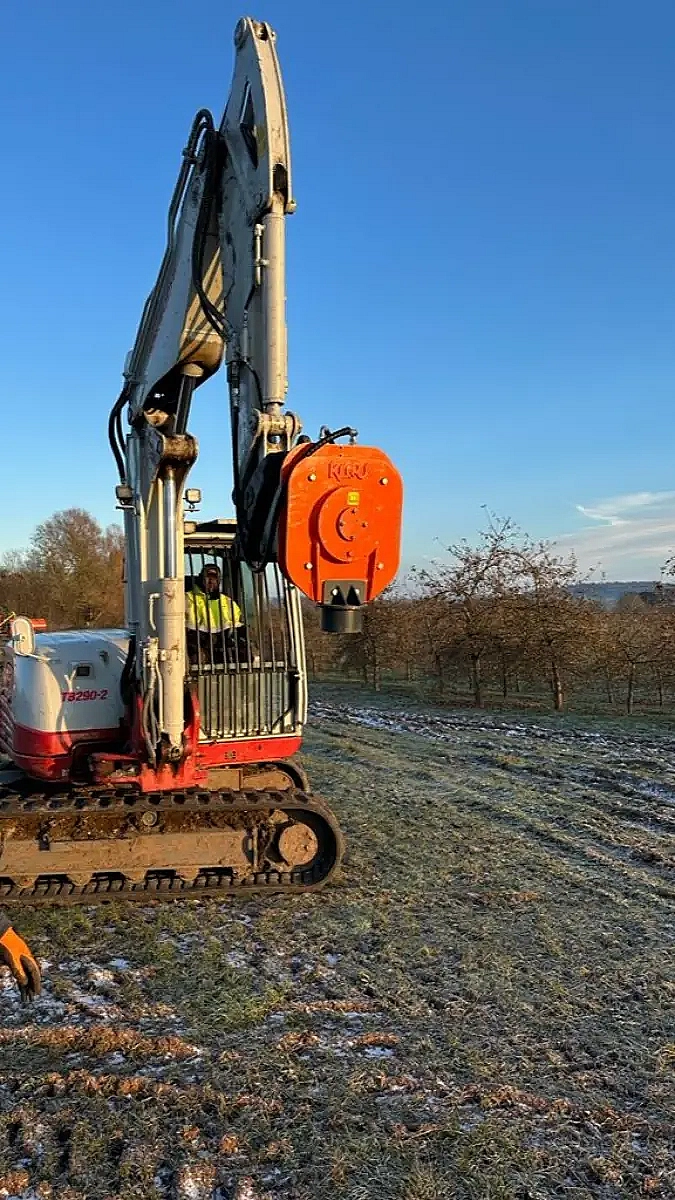

Vineyard stakes

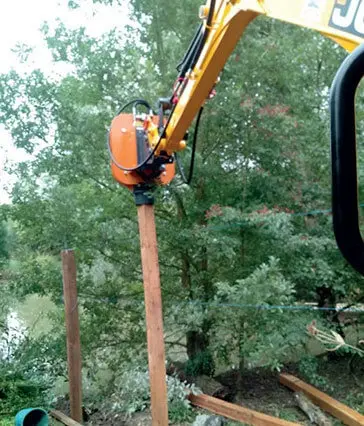

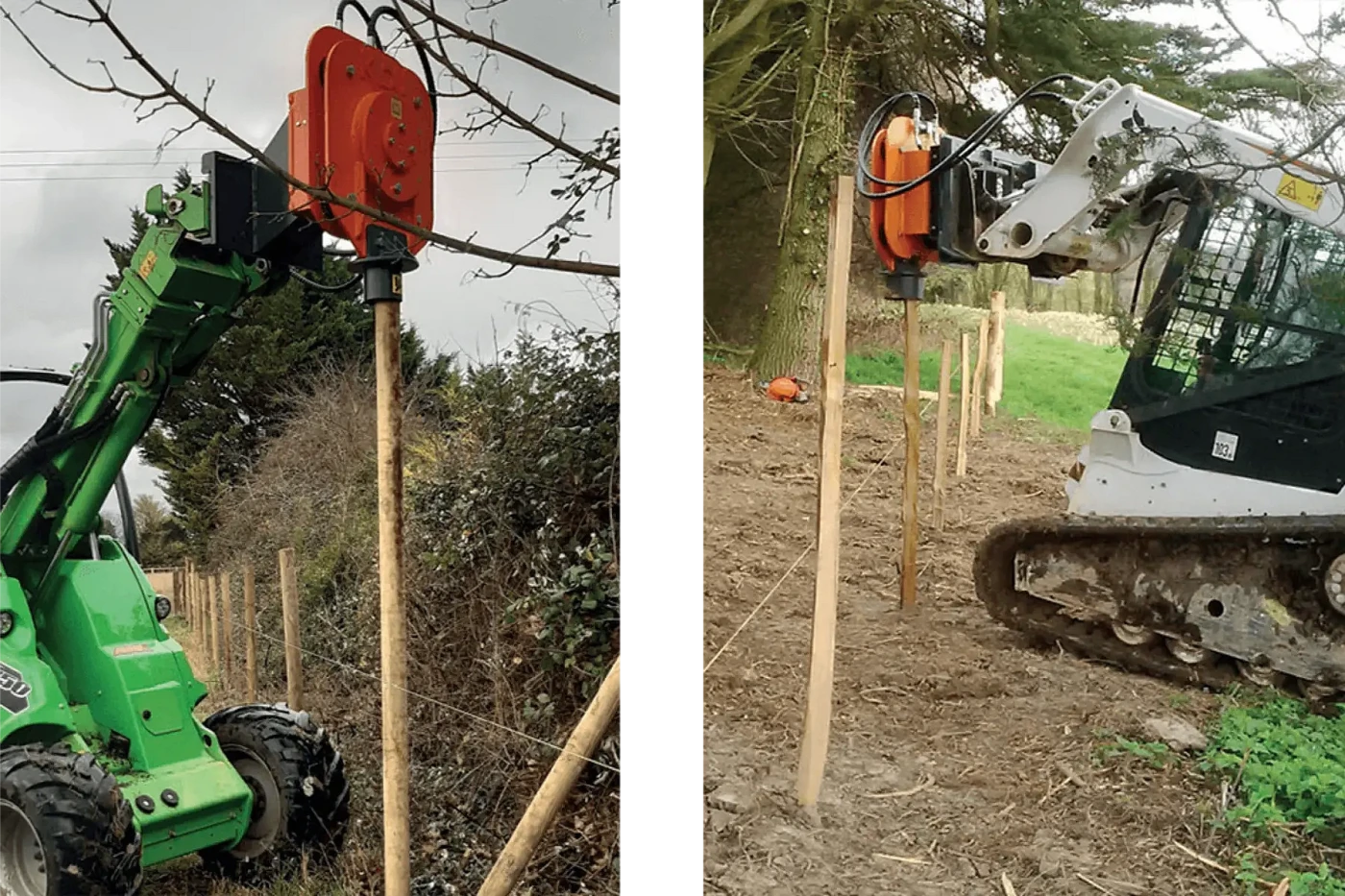

Farm fencing
Post-and-rail fencing
Wooden, plastic and steel shoring systems

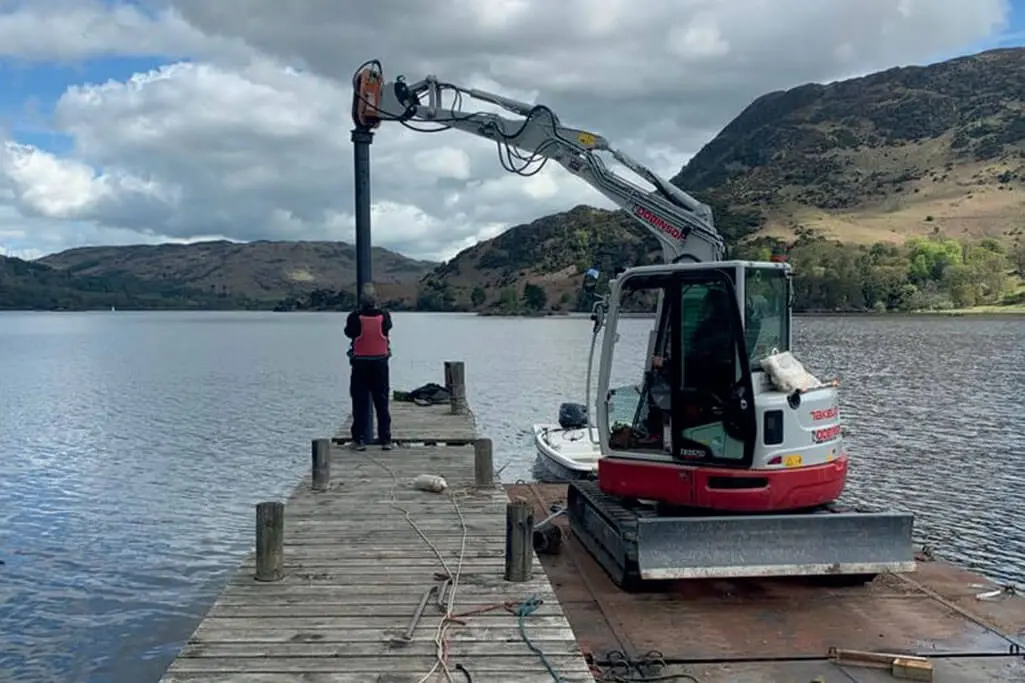

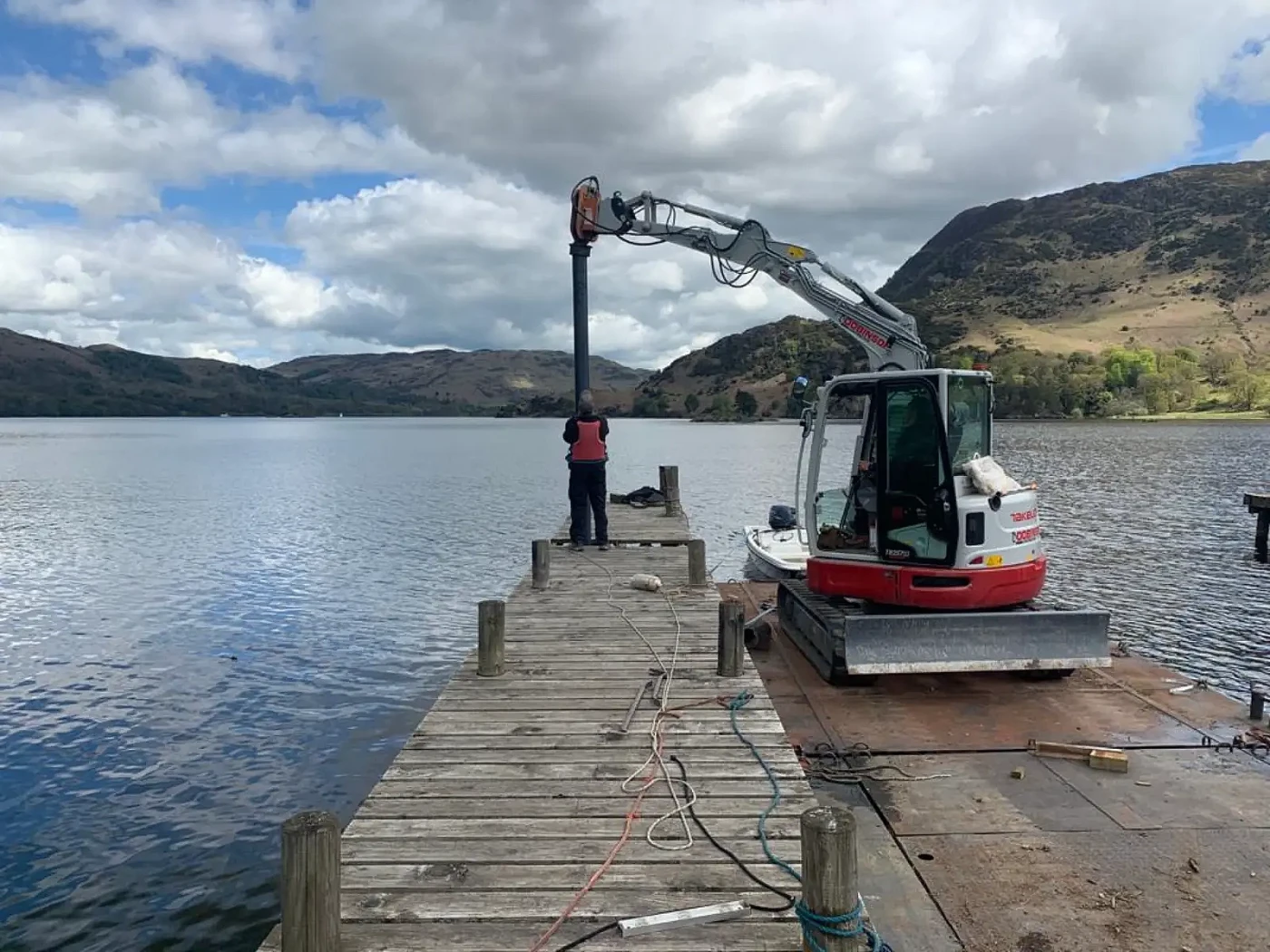

Jetty support posts
Pricing
Videos
Product Features

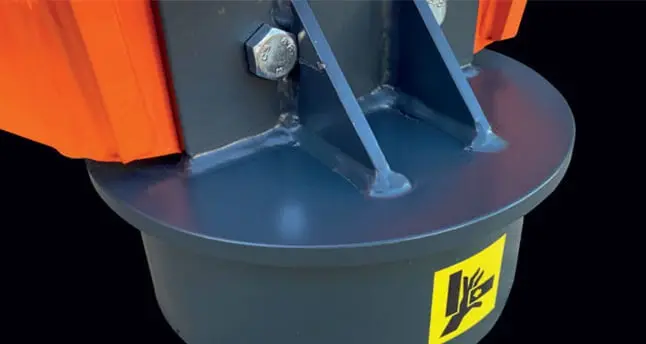

The interchangeable post cup/hat (custom options available) allows the post drivers to drive a variety of posts, stakes, sheet piles and other uprights accurately.

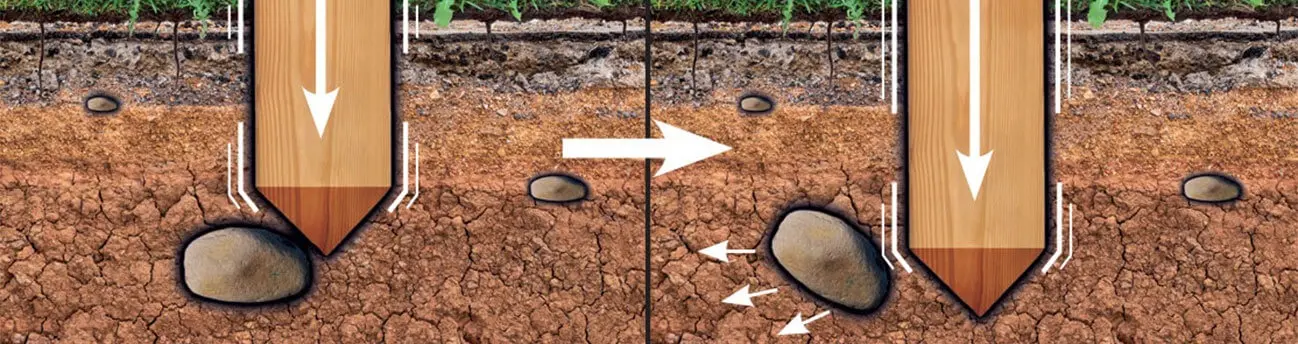

Specialist vibration transfer technology transmits vibrations from the unit through the post and into the ground - stones and other obstacles are simply vibrated out of the way.

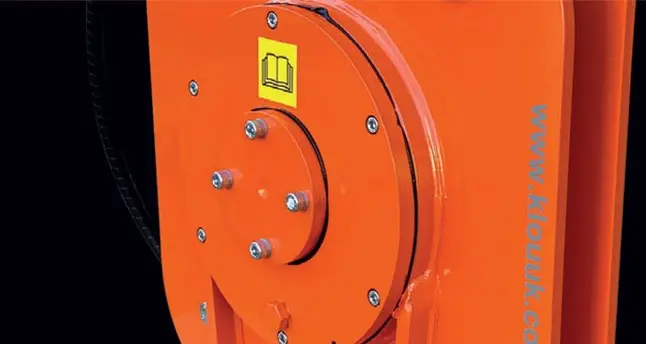

The eccentric weight runs in heavy-duty spherical roller bearings mounted within a sealed, oil-filled vibrator housing, removing the need for routine bearing maintenance, while maximising bearing life.

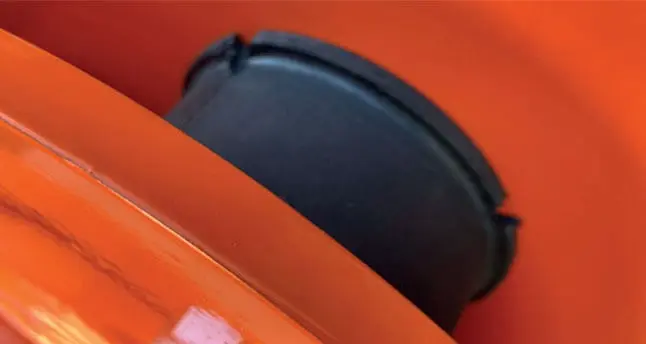

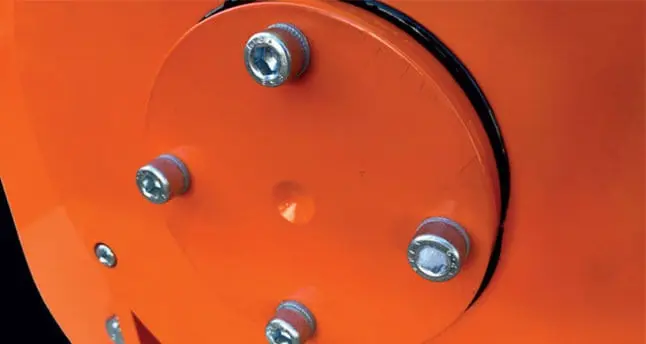

The vibrator unit is separated from the hitch unit on easily-replaceable rubber mountings, ensuring that vibration is not transmitted into the host machine.

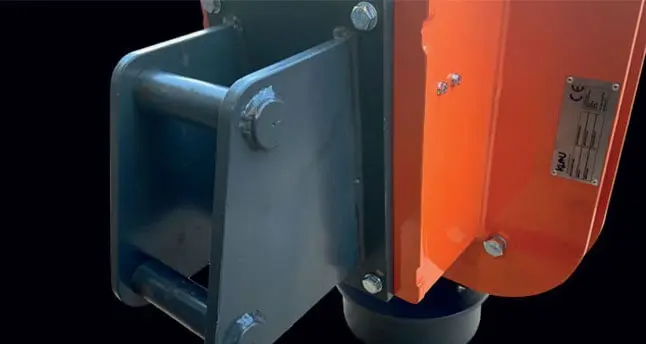

The rear-mounted hitch maximises the reach of the carrier machine, allowing even the tallest posts to be handled with ease.
All moving parts are enclosed within a heavy-duty steel housing, minimising safety concerns.

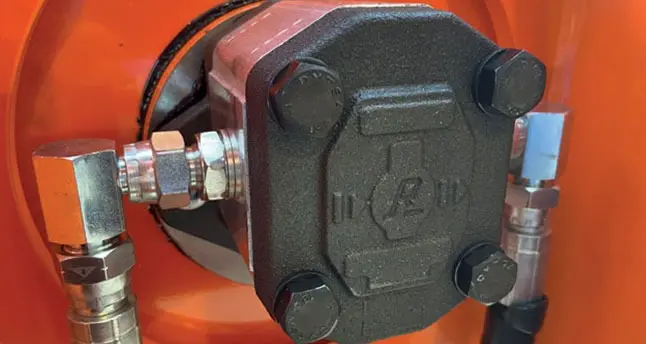

The hydraulic drive is optimised in order to reduce flow requirements, minimising demands on the carrier machine.

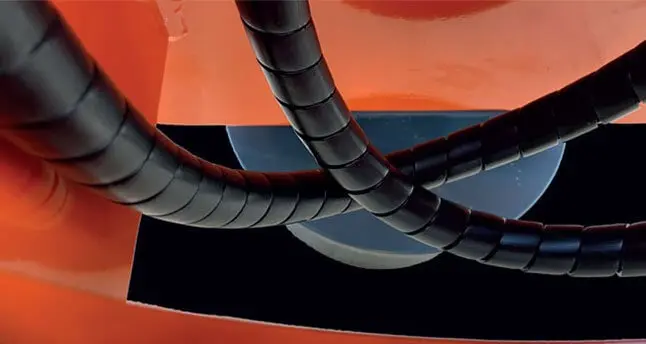

Hydraulic hoses are protected from scuff wear by heavy-duty spiral wrap.
Product Specification
*If it is not possible to adjust the output flow on the carrier machine, Klou can install a flow-control valve to permit the post driver to be run on carriers providing greater flow
**Case drain required only if pressure-free return line is not available
Download .pdf Document
Click on the button below to download the full .pdf document.

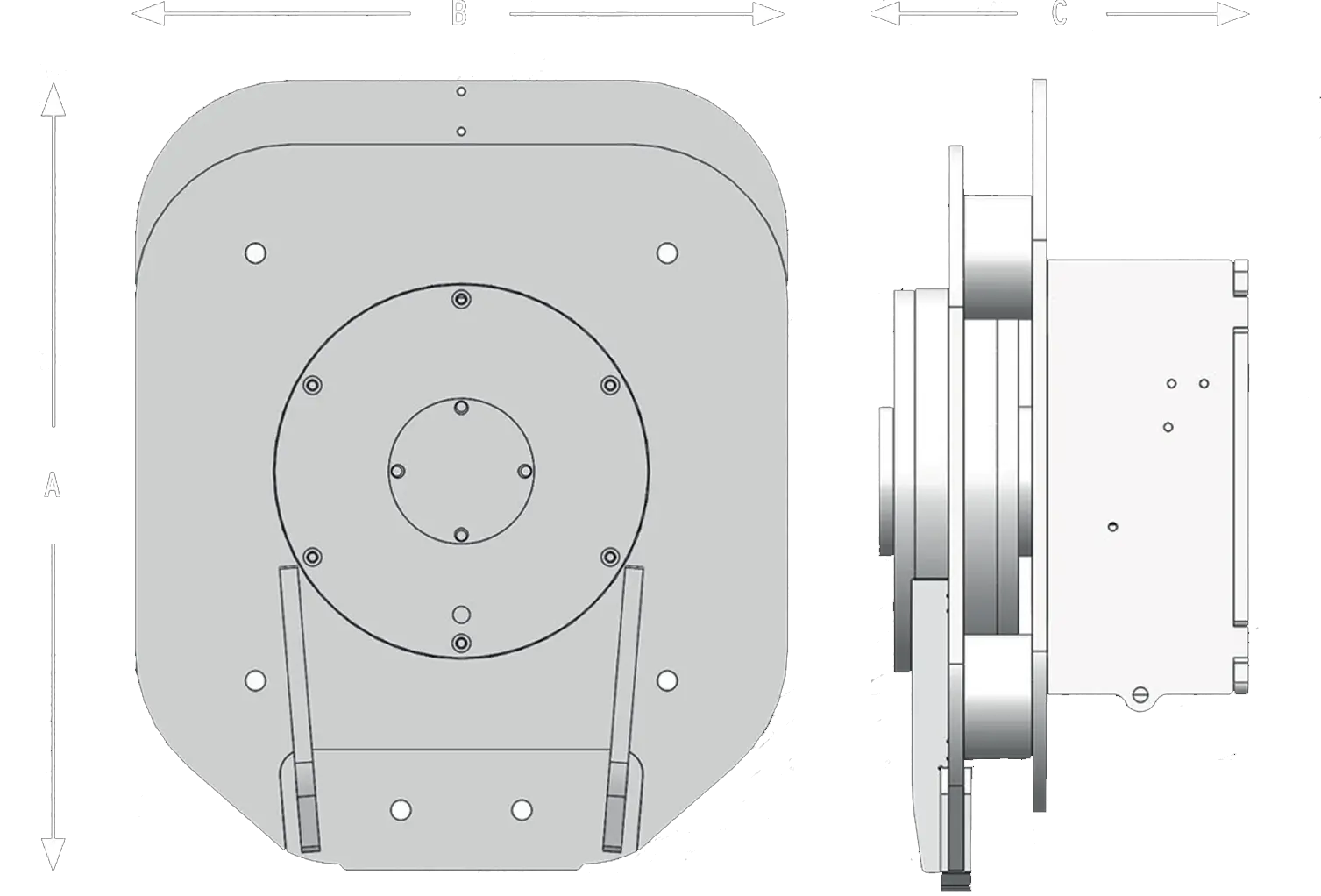

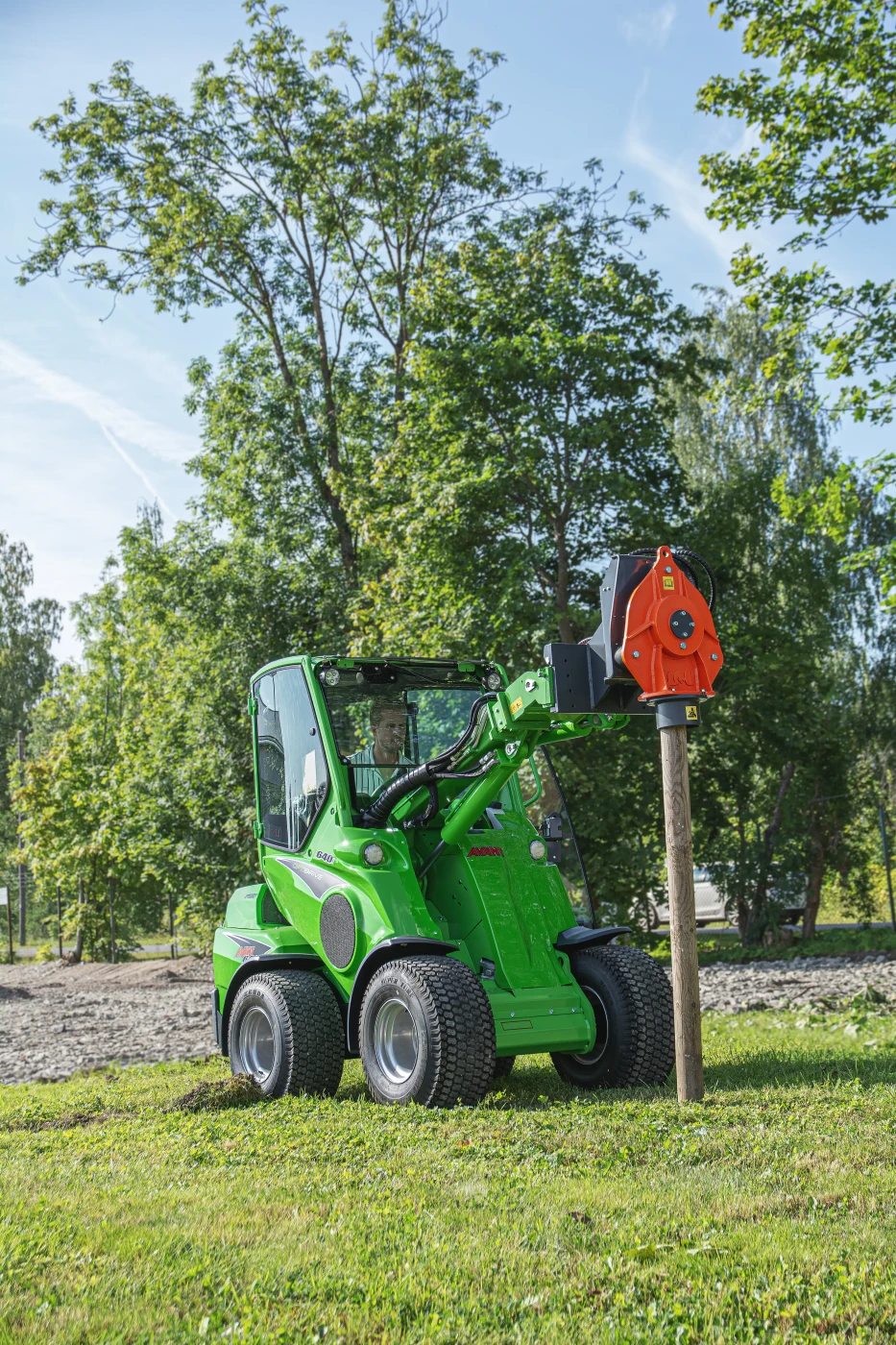

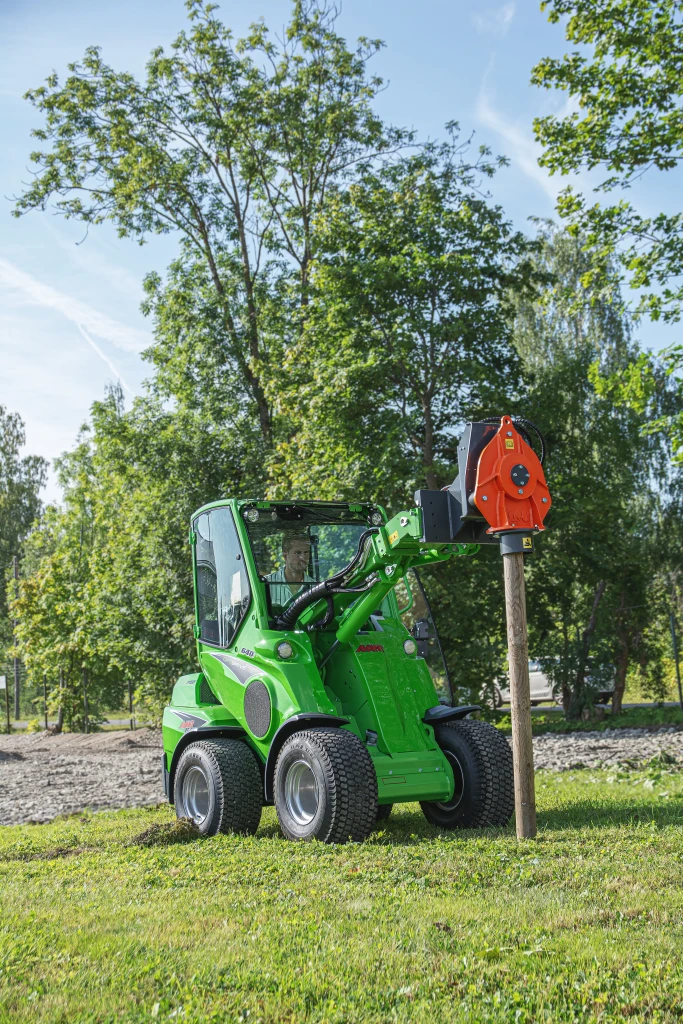

| Dimensions (exc. tool grip & post cup) | KPD217 | KPD1 |
|---|---|---|
| A - Overall height (mm) | 600 | 660 |
| B - Overall width (mm) | 500 | 540 |
| C - Overall length (mm) | 315 | 305 |
| Overall weight (kg) | 97 | 165 |
| Hydraulic service requirements | KPD217 | KPD1 |
|---|---|---|
| Min/max flow (litres/min) | 25/31* | 45/60* |
| Min/max pressure (bar) | 150/250 | 160/255 |
| Case drain required? | Yes** | Yes** |
| Pressure-free return line (hammer circuit) required? | Yes** | Yes** |
Compatible with the following machinery
Mini skid-steers
Sit-in skid-steers
Tractor Front-end Loaders
Telehandlers
Mini Articulated Loaders

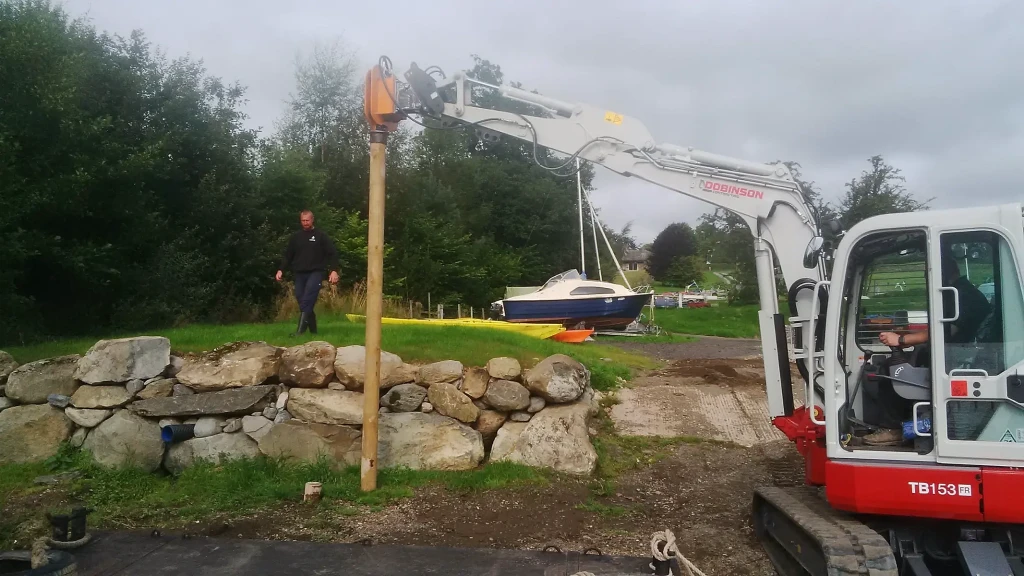

Excavators
