Non-rotating 5-Claw Grapple

Non-Rotating KXG 5-claw grapples are the ultimate option for any serious contractor in the tree management, site clearance and green waste recycling industries. With class-leading crushing power and nearly indestructible claws, it’s perfect for mounting under a tilt-rotator or in applications where rotation is not required. It’s a grapple that you can rely on day in, day out in all conditions.

Product Features

Large-bore ram for class-leading gripping and crushing power. KXG21 and up have hydraulic end damping to prevent impact jolt as grab fully opens.

Mechanical end-stops protect ram and timing bars from overloading when fully open.

Strenx® 700 body - Twice the strength of most structural steels to maximise lifespan.

Internal hoses protected by the grapple body.

Extreme-duty, heavily gusseted Hardox® 450 claws.

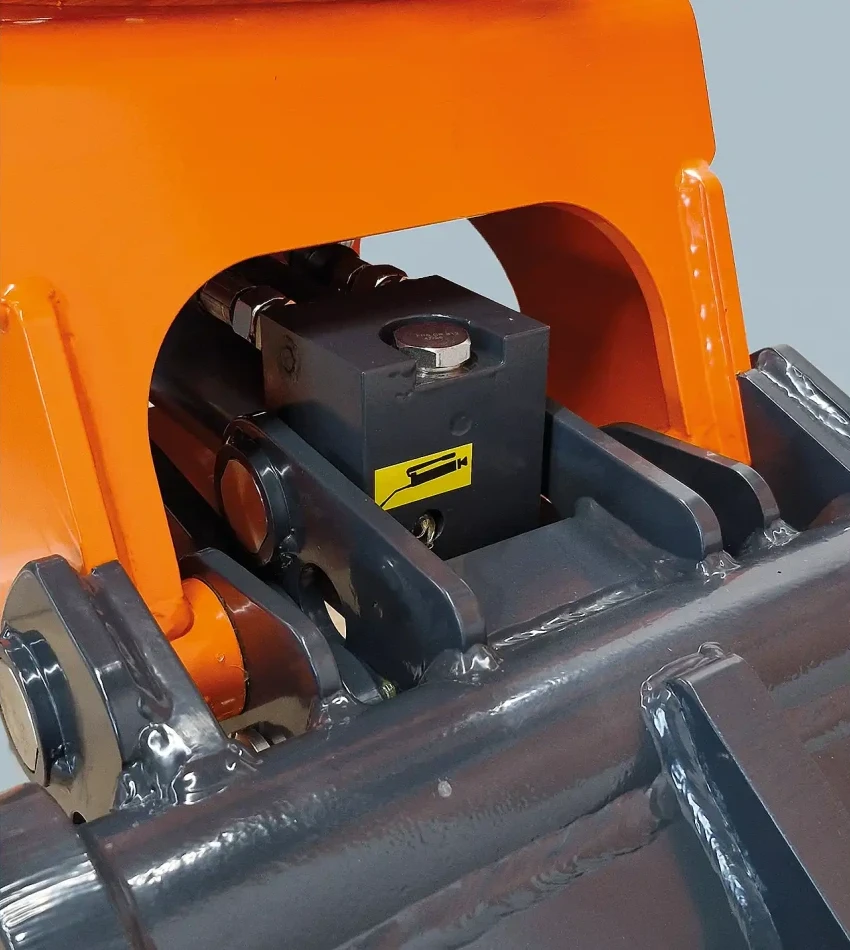

Integrated check valve prevents ram opening without operator input even if pressure is lost.

Compatible with the following machinery

KXG10

KXG15

KXG21

KXG29

Excavator

2.0 - 4.0 t

4.0 - 8.0 t

7.5 - 12.0 t

12.0 - 17.0 t

Pricing

KXG10-F

£2,825 - £3,425

KXG15-F

£4,285 - £5,085

KXG21-F

£5,450 - £6,450

KXG29-F

£6,445 - £7,645

Prices intended only as a guide and can change based on bracket type, hydraulic configuration and optional extras. All pricing subject to final order confirmation from Klou UK. All prices exclude VAT.

Product Specification

Download .pdf Document

Click on the button below to download the full .pdf document.

Download

Dimensions (excl tool grip)	KX610	KXG15	KXG21	KXG29
A - Overall height (mm)	356	475	584	684
B1 - Overall width open (mm)	1029	1284	1495	1756
B2 - Overall width closed (mm)	547	704	850	950
C - Overall length (mm)	413	500	620	734
D - Max open width (mm)	962	1200	1380	1626
E - Min. closed diameter (mm)	50	60	80
Max. log diameter (kg)	670	850	950	1080
Overall weight (kg)	95	195	345	590

Hydraulic service requirements	KXG10	KXG15	KXG21	KXG29
Min/max flow (litres/min)	15/60	35/100	50/115	70/180
Min/max pressure (bar)	150/250	150/250	150/300	150/300
Case drain required?	No	No	No	No
Pressure free return line required	No	No	No	No

Walk Around Video

Action Videos

Review of the Klou Non-rotating 5-Claw Grapple

We have been using the Klou timber grab for the past year, mounted on a Kubota 2.7-tonne machine hired from Express Hire in Dorset.

It has been used on many tasks involved in our day-to-day jobs, including harvesting operations, site maintenance, and clear up of large-diameter fells. I can say we have had absolutely no problems with it. It has made light work of the trickiest of situations, from stacking of produce to aid extraction, to raking debris for chipping or burning.

It is a strong, robust grab and its width makes it stand out from other grabs available.

I hope you find this review helpful, and I am happy to endorse this product.

Dave Arnold, Tree Lions Forestry Contracting
