Cone Splitter

KCS500 • KCS800

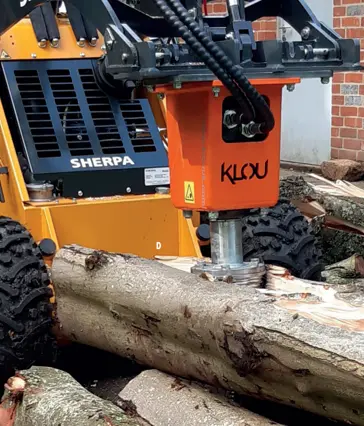

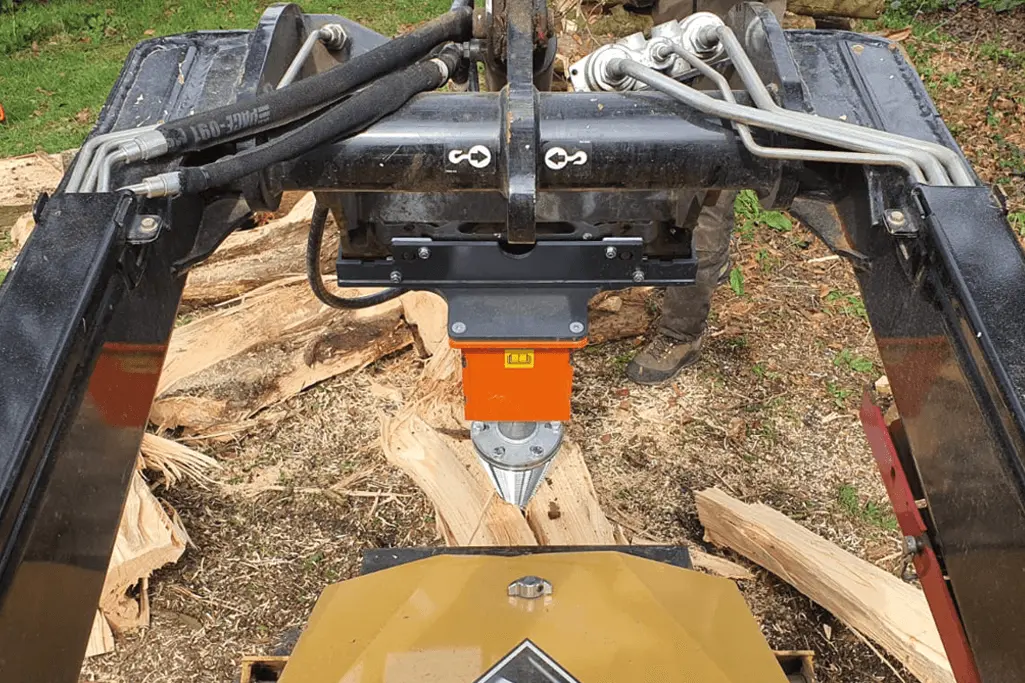

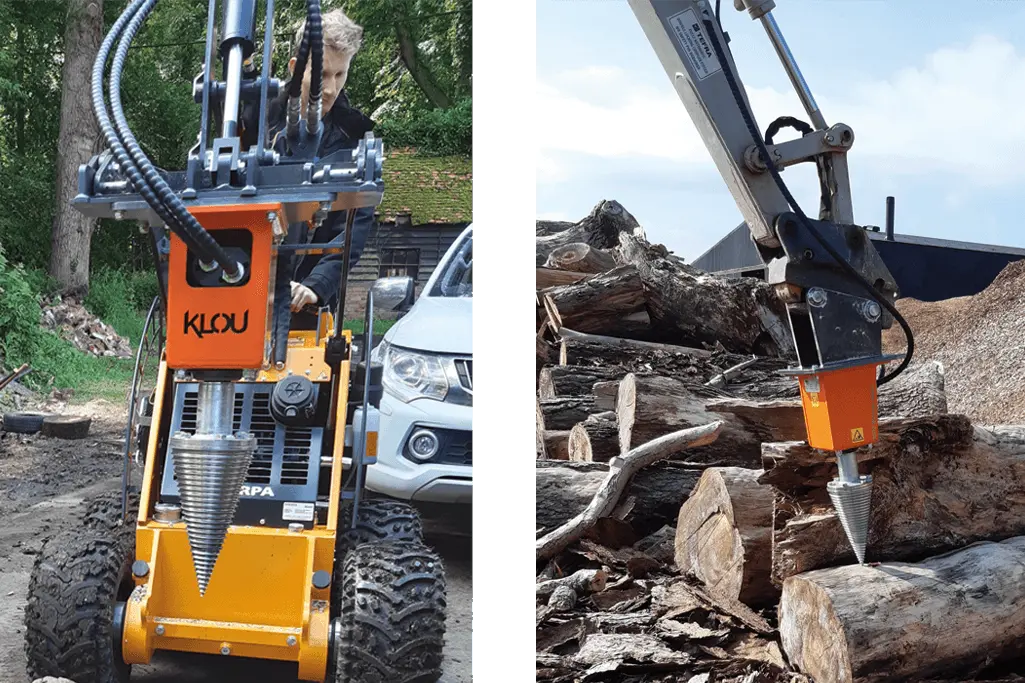

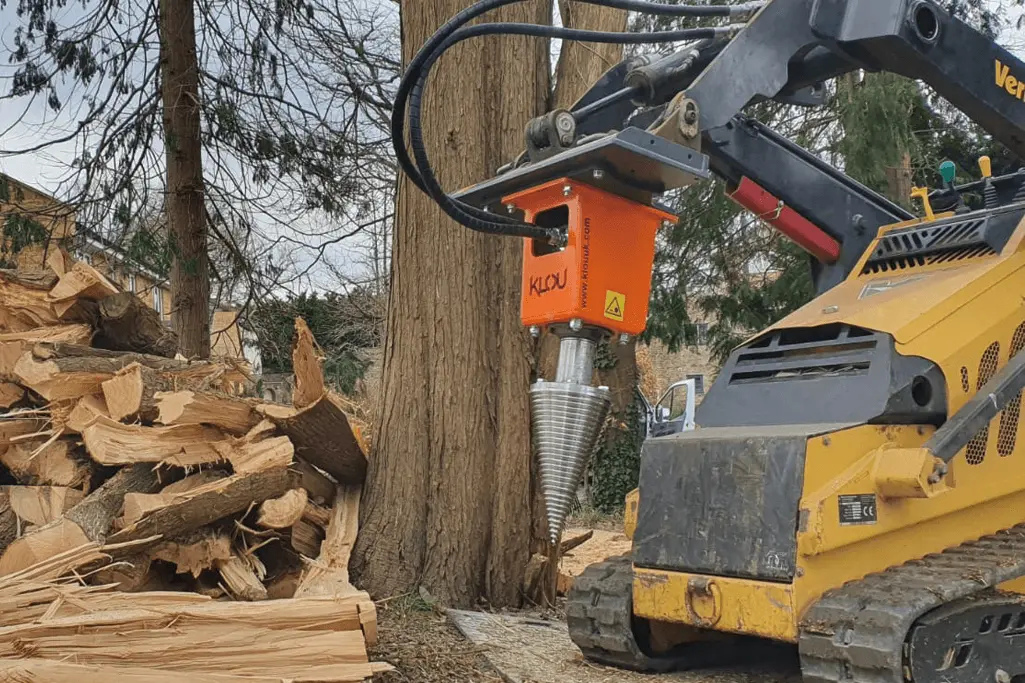

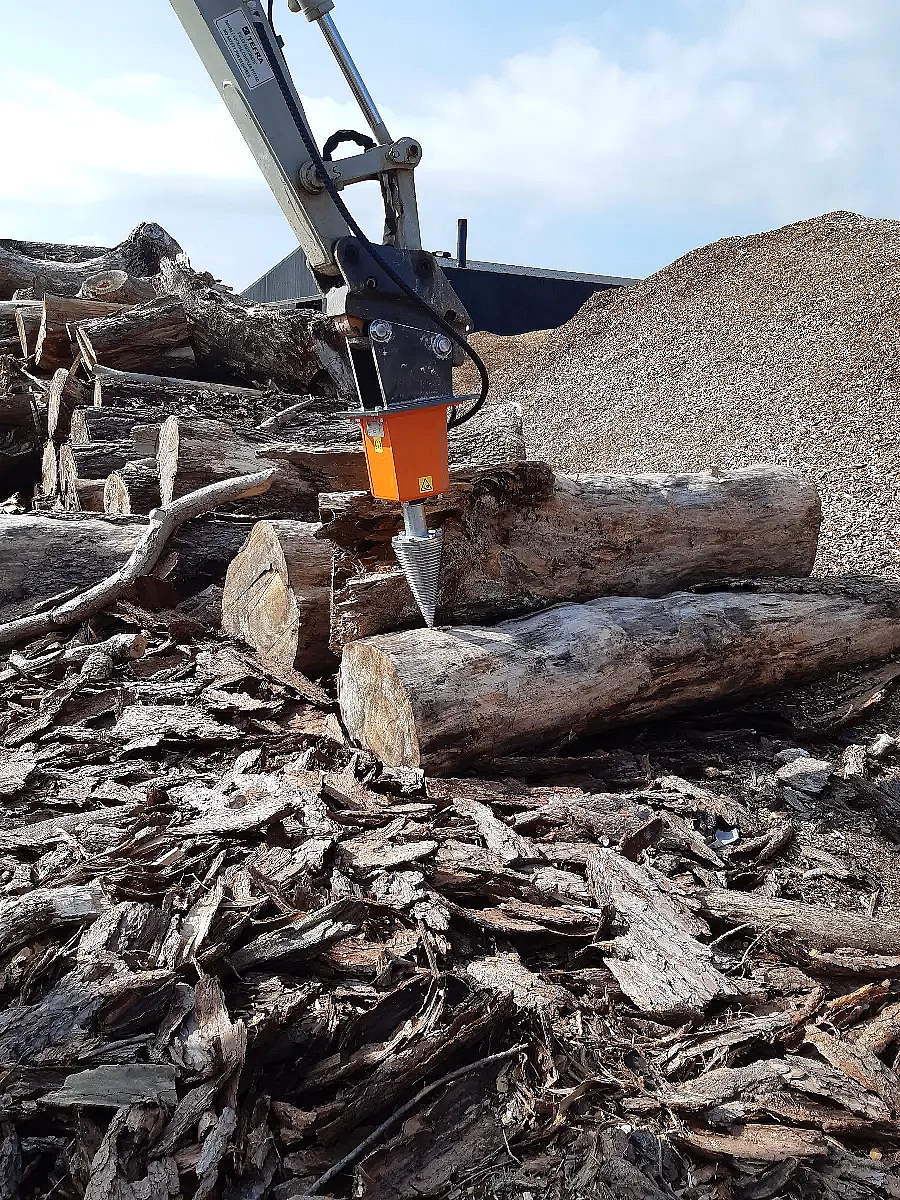

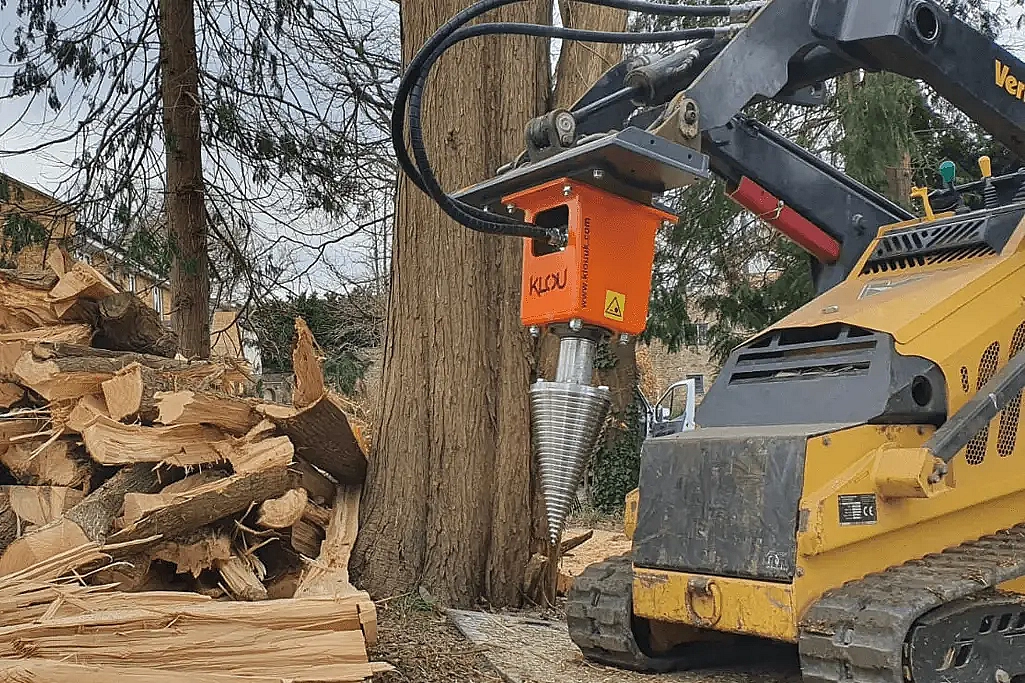

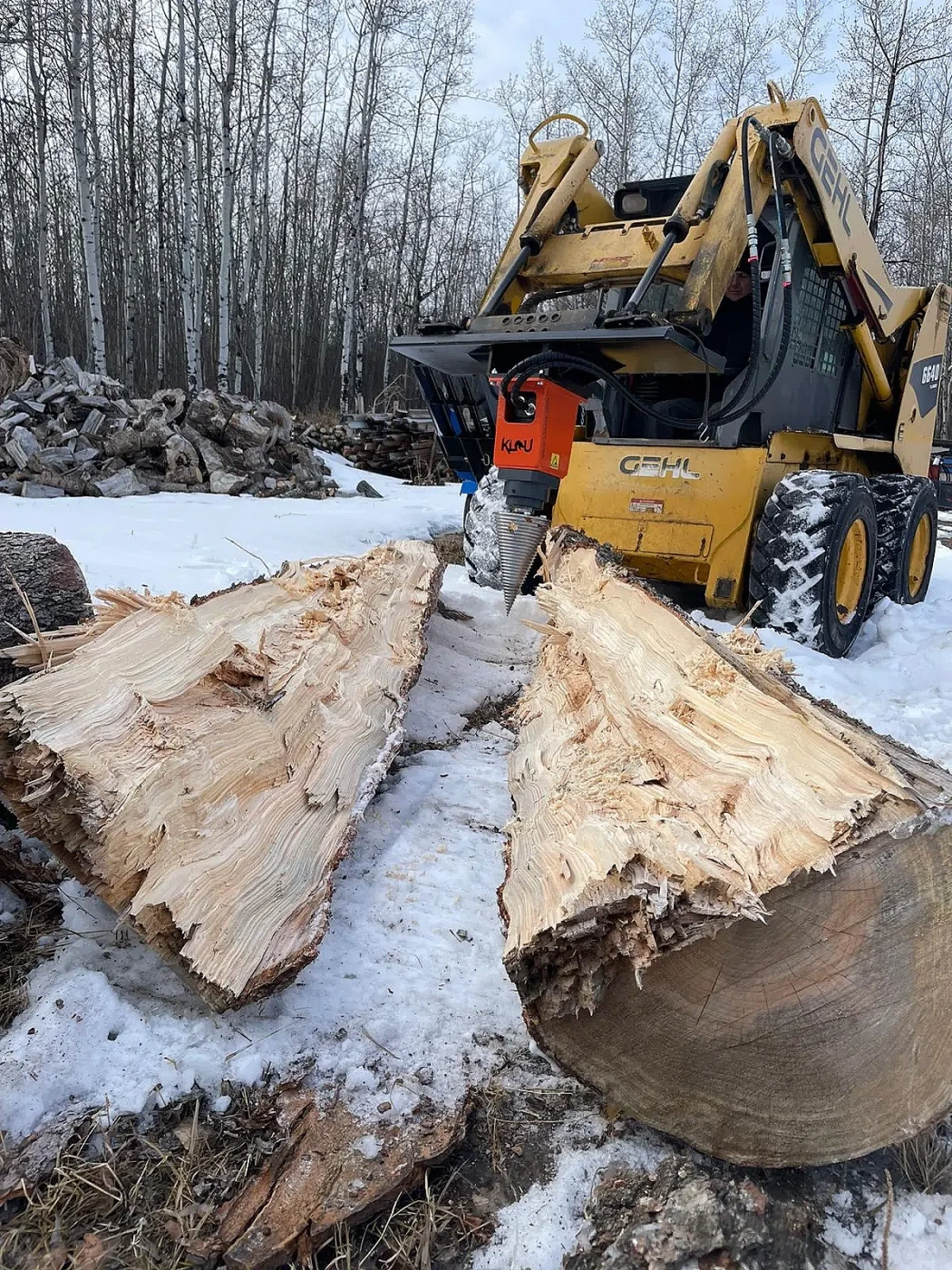

The Klou KCS Cone Splitters are built to break down big timber when mounted on a variety of different carriers, including excavators, mini-loaders and skid-steers. With a high-torque direct drive and an extremely aggressive single-start cone, they are capable of dealing with waste wood, firewood and even old tree stumps.

They can be used for:

  • Breaking up logs that are too big to fit into woodchippers

  • Splitting large-diameter lengths of firewood to allow them to fit wood processors

  • Reducing large pieces of waste wood such as stumps, permitting easier handling

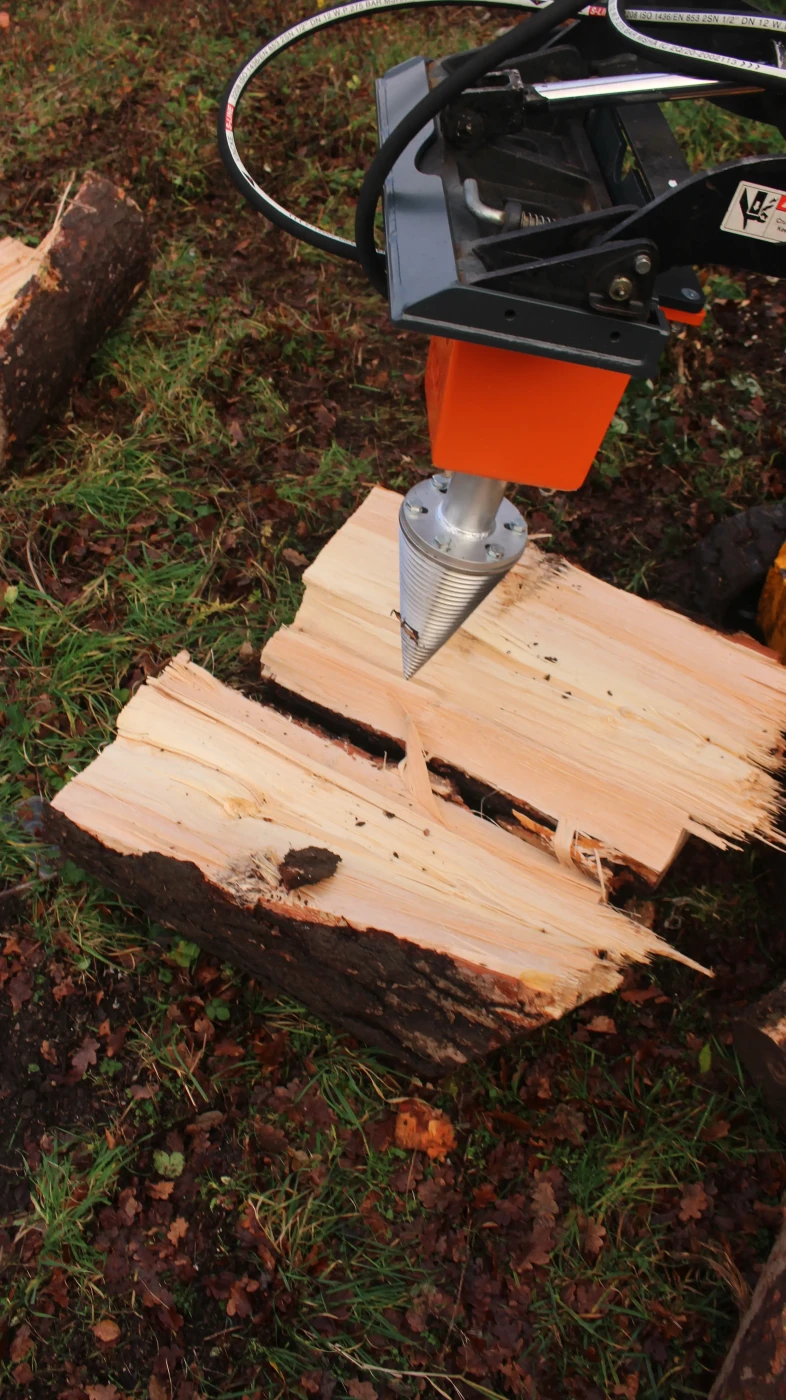

  • General firewood splitting work

Pricing

Model No.Guide mini skid-steer weight class (t)Guide sit-in skid-steer weight class (t)Guide mini articulated loader weight class (t)Guide excavator weight class (t)Guide price range (UK)
KCS5000.6-1.5Not recommended0.9-1.21.5-2.0£3,000-£3,500
KCS8001.1-2Not recommended1.2-1.62.0-3.0£3,500-£4,000
KCS800HD1.8-32.5-41.5-32.5-8.0£4,200-£4,800

Prices intended only as a guide and can change based on bracket type, hydraulic configuration and optional extras. All pricing subject to final order confirmation from Klou UK. All prices exclude VAT.

Videos

Product Features

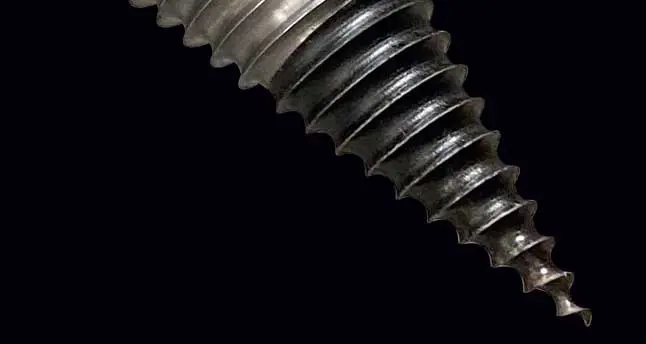

The cone tip is hardened to minimise wear under heavy usage, and can be replaced if required, without replacing the whole cone.

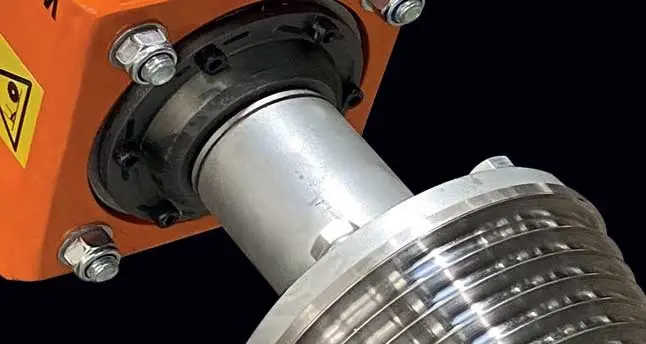

The low-speed, high-torque geroler motor removes the need for a reduction gearbox, minimising the number of moving parts and maximising efficiency.

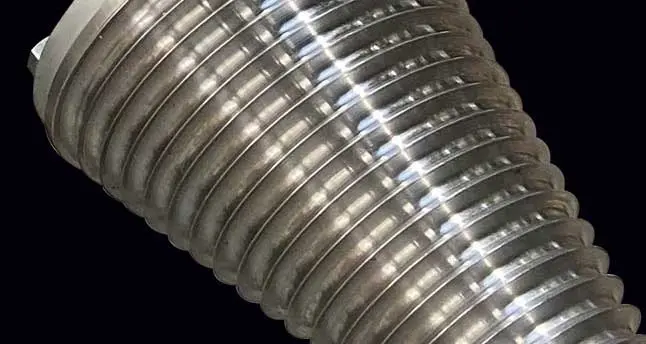

The aggressive cone taper angle and sharp, deep thread ensures that the cone rapidly splits the workpiece, without slipping.

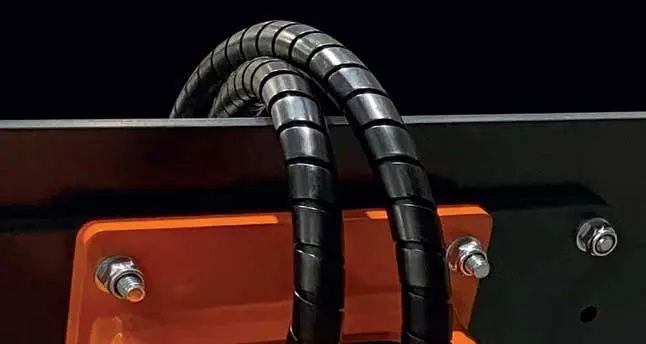

The sturdy hydraulic hoses are protected from scuff wear by heavy-duty spiral wrap.

Product Specification

Download .pdf Document

Click on the button below to download the full .pdf document.

Download

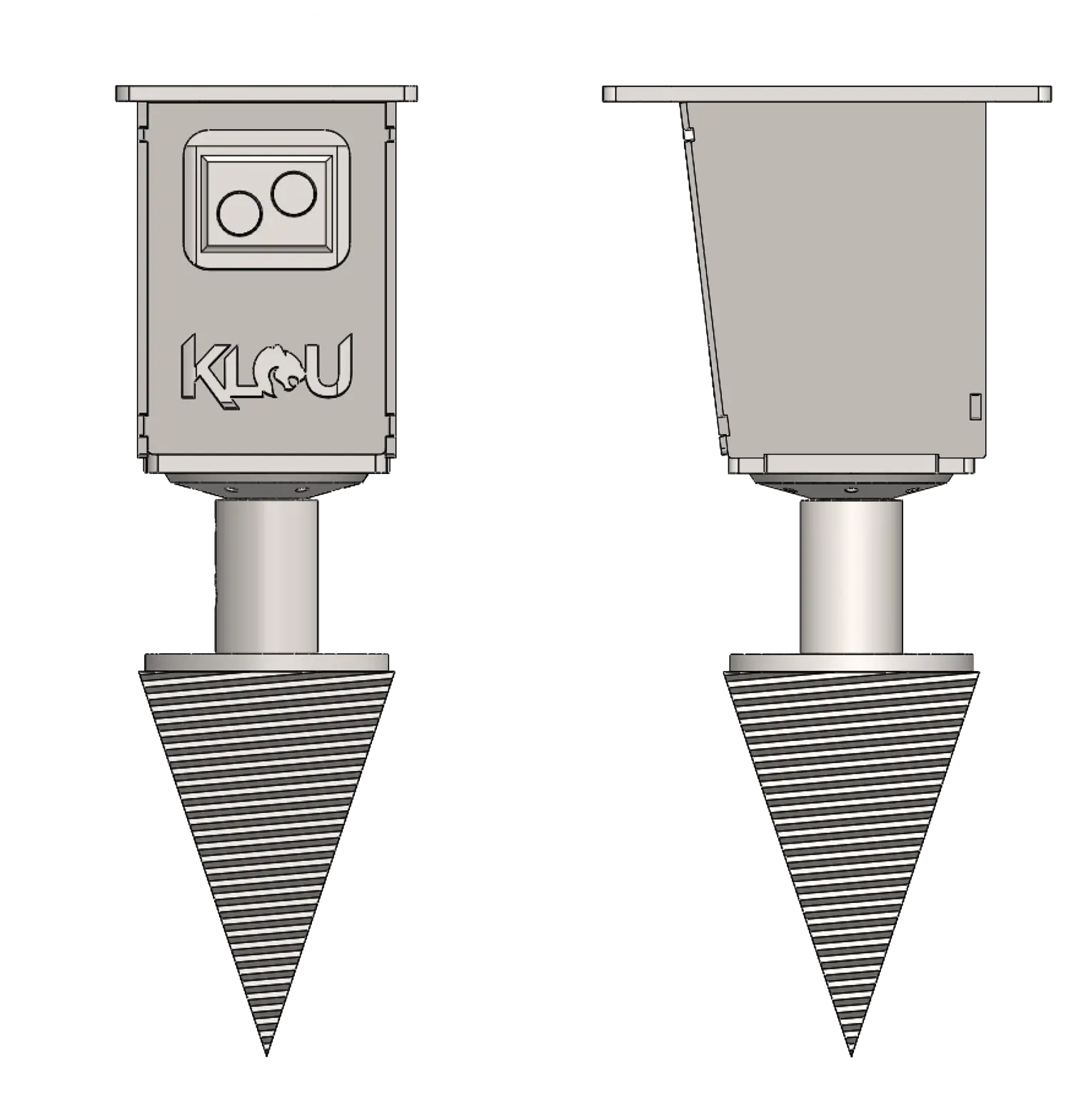

Dimensions (excluding tool grip)KCS500KCS800
A - Overall height (mm)800800
B - Overall width (mm)235235
C - Overall length (mm)350350
D - Cone diameter - widest (mm)195215
E - Overall height of cone - (mm)340365
Overall weight (kg)125130
Hydraulic service requirementsKCS500KCS800
Min/max flow (litres/min)25/8035/80
Min/max pressure (bar)175/255160/235
Case drain required?NoNo
Pressure-free return line required?NoNo

Compatible with the following machinery

Mini skid-steers

Sit-in skid-steers

Tractor Front-end Loaders

Telehandlers

Mini Articulated Loaders

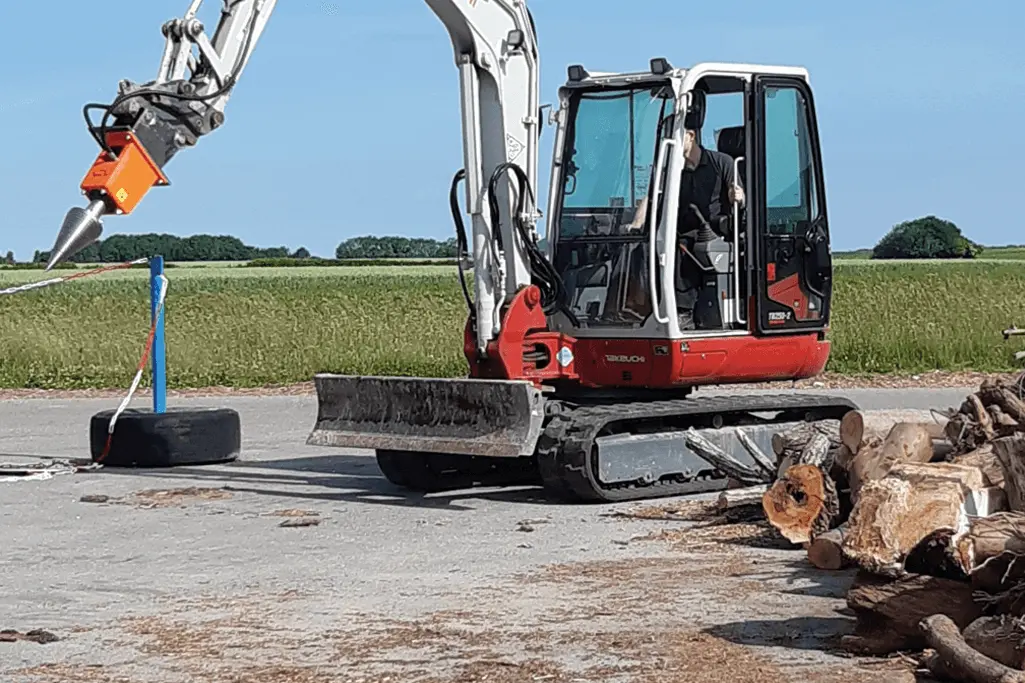

Excavators

Review of the Klou Cone Splitter

I have noted below some of the benefits we have noticed from owning a Klou Cone Splitter:

Faster, easier and safer firewood processing
The option to split down larger sections of timber for the chipper, saving on extra vehicle trips and space in our yard for low-value timber
The larger timber arisings from tree work can be an extra burden to remove. Customers are often happy to keep the smaller timber that won’t go through the chipper but the oversized timber is too large for them to manage. Having the ability to offer all of the timber to be left in a manageable size saves cost for us and replaces that with a valuable chargeable service to the customer.

Ian Geddes, Managing Director of Toller Tree Care Ltd
